CCAction Class Reference

Base class for CCAction objects. More...

#include <CCAction.h>

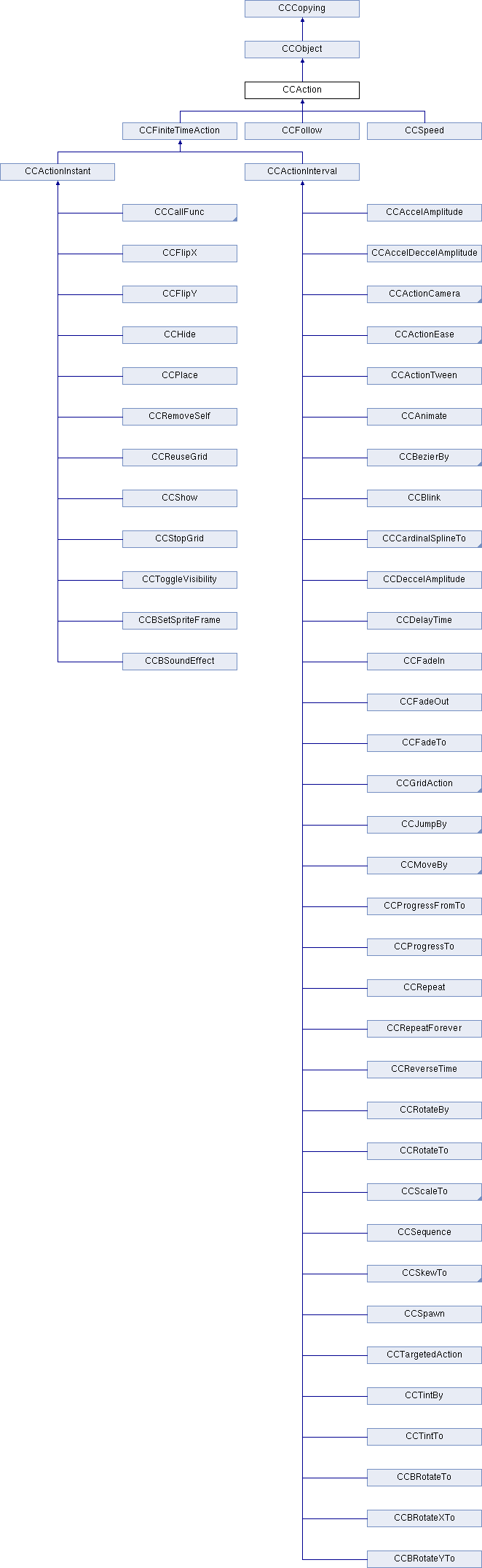

Inheritance diagram for CCAction:

Public Member Functions
	CCAction (void)
	ctor ()
	CCAction ()
virtual	~CCAction (void)
const char *	description ()
virtual CCObject *	copyWithZone (CCZone *pZone)
virtual bool	isDone (void)
	return true if the action has finished More...
var	isDone ()
	return true if the action has finished More...
local	isDone ()
	return true if the action has finished More...
virtual void	startWithTarget (CCNode *pTarget)
	called before the action start. It will also set the target. More...
var	startWithTarget ( var pTarget)
	called before the action start. It will also set the target. More...
local	startWithTarget ( local pTarget)
	called before the action start. It will also set the target. More...
virtual void	stop (void)
	called after the action has finished. More...
var	stop ()
	called after the action has finished. More...
local	stop ()
	called after the action has finished. More...
virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
virtual void	update (float time)
	called once per frame. More...
local	update ( local time)
	called once per frame. More...
CCNode *	getTarget (void)
void	setTarget (CCNode *pTarget)
	The action will modify the target properties. More...
var	setTarget ( var pTarget)
	The action will modify the target properties. More...
local	setTarget ( local pTarget)
	The action will modify the target properties. More...
CCNode *	getOriginalTarget (void)
local	getOriginalTarget ()
void	setOriginalTarget (CCNode *pOriginalTarget)
	Set the original target, since target can be nil. More...
int	getTag (void)
var	getTag ()
local	getTag ()
void	setTag (int nTag)
var	setTag ( var nTag)
local	setTag ( local nTag)
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions
static CCAction *	create ()
	Create an action. More...
var	create ()
	Create an action. More...
local	create ()
	Create an action. More...

Protected Attributes
CCNode *	m_pOriginalTarget
CCNode *	m_pTarget
	The "target". More...
var	m_pTarget
	The "target". More...
local	m_pTarget
	The "target". More...
int	m_nTag
	The action tag. More...
Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

Base class for CCAction objects.

Constructor & Destructor Documentation

CCAction

(

void

)

var ctor

(

)

local CCAction

(

)

virtual ~CCAction ( void  )

virtual

Member Function Documentation

virtual CCObject* copyWithZone ( CCZone *  pZone)

virtual

Reimplemented from CCCopying.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCTintTo, CCFadeTo, CCFadeOut, CCFadeIn, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpTo, CCEaseBackIn, CCJumpBy, CCCallFuncO, CCEaseBounceInOut, CCEaseBounceOut, CCSkewTo, CCCallFuncND, CCEaseBounceIn, CCMoveTo, CCCallFuncN, CCEaseBounce, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCRotateTo, CCEaseElasticIn, CCCallFunc, CCEaseCubicActionOut, CCEaseElastic, CCEaseCubicActionIn, CCSplitCols, CCEaseCircleActionInOut, CCSplitRows, CCEaseSineInOut, CCSpawn, CCPlace, CCTwirl, CCEaseCircleActionOut, CCEaseSineOut, CCJumpTiles3D, CCFollow, CCEaseCircleActionIn, CCFlipY, CCEaseSineIn, CCWaves, CCRepeatForever, CCWavesTiles3D, CCBRotateYTo, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCBRotateXTo, CCFlipX, CCEaseQuinticActionOut, CCLiquid, CCEaseExponentialOut, CCTurnOffTiles, CCBRotateTo, CCSpeed, CCEaseQuinticActionIn, CCEaseExponentialIn, CCShaky3D, CCBSoundEffect, CCRepeat, CCRemoveSelf, CCEaseQuarticActionInOut, CCEaseInOut, CCBSetSpriteFrame, CCRipple3D, CCToggleVisibility, CCEaseQuarticActionOut, CCCardinalSplineTo, CCEaseOut, CCEaseQuarticActionIn, CCHide, CCEaseIn, CCOrbitCamera, CCLens3D, CCSequence, CCEaseQuadraticActionInOut, CCShuffleTiles, CCEaseRateAction, CCFlipY3D, CCEaseQuadraticActionOut, CCShow, CCFlipX3D, CCActionInterval, CCProgressFromTo, CCEaseQuadraticActionIn, CCShatteredTiles3D, CCActionInstant, CCActionEase, CCWaves3D, CCProgressTo, CCGridAction, CCShakyTiles3D, and CCEaseBezierAction.

static CCAction* create ( )

static

Create an action.

var create ( )

static

Create an action.

local create ( )

static

Create an action.

const char* description

(

)

CCNode* getOriginalTarget ( void  )

inline

var getOriginalTarget (   )

inline

local getOriginalTarget (   )

inline

int getTag ( void  )

inline

var getTag (   )

inline

local getTag (   )

inline

CCNode* getTarget ( void  )

inline

var getTarget (   )

inline

local getTarget (   )

inline

virtual bool isDone ( void  )

virtual

return true if the action has finished

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCRepeat, CCActionInterval, and CCActionInstant.

var isDone (   )

virtual

return true if the action has finished

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCRepeat, CCActionInterval, and CCActionInstant.

local isDone (   )

virtual

return true if the action has finished

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCRepeat, CCActionInterval, and CCActionInstant.

void setOriginalTarget ( CCNode *  pOriginalTarget)

inline

Set the original target, since target can be nil.

Is the target that were used to run the action. Unless you are doing something complex, like CCActionManager, you should NOT call this method. The target is 'assigned', it is not 'retained'.

Since

v0.8.2

var setOriginalTarget ( var  pOriginalTarget)

inline

Set the original target, since target can be nil.

Is the target that were used to run the action. Unless you are doing something complex, like CCActionManager, you should NOT call this method. The target is 'assigned', it is not 'retained'.

Since

v0.8.2

local setOriginalTarget ( local  pOriginalTarget)

inline

Set the original target, since target can be nil.

Is the target that were used to run the action. Unless you are doing something complex, like CCActionManager, you should NOT call this method. The target is 'assigned', it is not 'retained'.

Since

v0.8.2

void setTag ( int  nTag)

inline

var setTag ( var  nTag)

inline

local setTag ( local  nTag)

inline

void setTarget ( CCNode *  pTarget)

inline

The action will modify the target properties.

var setTarget ( var  pTarget)

inline

The action will modify the target properties.

local setTarget ( local  pTarget)

inline

The action will modify the target properties.

virtual void startWithTarget ( CCNode *  pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCReuseGrid, CCBRotateXTo, CCStopGrid, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCSpeed, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCActionInterval, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

var startWithTarget ( var  pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCReuseGrid, CCBRotateXTo, CCStopGrid, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCSpeed, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCActionInterval, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

local startWithTarget ( local  pTarget)

virtual

called before the action start. It will also set the target.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCTintBy, CCTintTo, CCFadeTo, CCBlink, CCScaleBy, CCScaleTo, CCBezierTo, CCBezierBy, CCJumpTo, CCJumpBy, CCSkewBy, CCSkewTo, CCMoveTo, CCMoveBy, CCRotateBy, CCRotateTo, CCSplitCols, CCSplitRows, CCSpawn, CCRepeatForever, CCBRotateYTo, CCReuseGrid, CCBRotateXTo, CCStopGrid, CCCardinalSplineBy, CCTurnOffTiles, CCBRotateTo, CCSpeed, CCDeccelAmplitude, CCRepeat, CCAccelAmplitude, CCCardinalSplineTo, CCAccelDeccelAmplitude, CCOrbitCamera, CCSequence, CCShuffleTiles, CCActionInterval, CCProgressFromTo, CCActionTween, CCActionCamera, CCActionEase, CCProgressTo, and CCGridAction.

virtual void step ( float  dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCActionInterval, and CCActionInstant.

var step ( var  dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCActionInterval, and CCActionInstant.

local step ( local  dt)

virtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented in CCFollow, CCRepeatForever, CCSpeed, CCActionInterval, and CCActionInstant.

virtual void stop ( void  )

virtual

called after the action has finished.

It will set the 'target' to nil. IMPORTANT: You should never call "[action stop]" manually. Instead, use: "target->stopAction(action);"

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCBlink, CCSpawn, CCFollow, CCSpeed, CCRepeat, CCSequence, and CCActionEase.

var stop (   )

virtual

called after the action has finished.

It will set the 'target' to nil. IMPORTANT: You should never call "[action stop]" manually. Instead, use: "target->stopAction(action);"

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCBlink, CCSpawn, CCFollow, CCSpeed, CCRepeat, CCSequence, and CCActionEase.

local stop (   )

virtual

called after the action has finished.

It will set the 'target' to nil. IMPORTANT: You should never call "[action stop]" manually. Instead, use: "target->stopAction(action);"

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCBlink, CCSpawn, CCFollow, CCSpeed, CCRepeat, CCSequence, and CCActionEase.

virtual void update ( float  time)

virtual

called once per frame.

time a value between 0 and 1

For example:

• 0 means that the action just started
• 0.5 means that the action is in the middle
• 1 means that the action is over

Reimplemented from CCObject.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCTintTo, CCFadeTo, CCFadeOut, CCFadeIn, CCBlink, CCScaleTo, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewTo, CCEaseBounceOut, CCEaseBounceIn, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCRotateTo, CCEaseElasticIn, CCCallFunc, CCEaseCubicActionOut, CCSplitCols, CCEaseCubicActionIn, CCSpawn, CCSplitRows, CCEaseCircleActionInOut, CCEaseSineInOut, CCTwirl, CCPlace, CCEaseCircleActionOut, CCJumpTiles3D, CCEaseSineOut, CCEaseCircleActionIn, CCFlipY, CCBEaseInstant, CCEaseSineIn, CCWaves, CCWavesTiles3D, CCBRotateYTo, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCBRotateXTo, CCLiquid, CCFlipX, CCEaseQuinticActionOut, CCEaseExponentialOut, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCEaseQuinticActionIn, CCShaky3D, CCEaseExponentialIn, CCBSoundEffect, CCRepeat, CCRemoveSelf, CCEaseQuarticActionInOut, CCAccelAmplitude, CCRipple3D, CCEaseInOut, CCBSetSpriteFrame, CCCardinalSplineTo, CCToggleVisibility, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCFadeOutTRTiles, CCSequence, CCEaseQuarticActionIn, CCOrbitCamera, CCLens3D, CCHide, CCEaseIn, CCEaseQuadraticActionInOut, CCShuffleTiles, CCFlipY3D, CCEaseQuadraticActionOut, CCShow, CCFlipX3D, CCProgressFromTo, CCActionTween, CCShatteredTiles3D, CCEaseQuadraticActionIn, CCActionInstant, CCActionEase, CCWaves3D, CCProgressTo, CCPageTurn3D, CCShakyTiles3D, and CCEaseBezierAction.

var update ( var  time)

virtual

called once per frame.

time a value between 0 and 1

For example:

• 0 means that the action just started
• 0.5 means that the action is in the middle
• 1 means that the action is over

Reimplemented from CCObject.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCTintTo, CCFadeTo, CCFadeOut, CCFadeIn, CCBlink, CCScaleTo, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewTo, CCEaseBounceOut, CCEaseBounceIn, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCRotateTo, CCEaseElasticIn, CCCallFunc, CCEaseCubicActionOut, CCSplitCols, CCEaseCubicActionIn, CCSpawn, CCSplitRows, CCEaseCircleActionInOut, CCEaseSineInOut, CCTwirl, CCPlace, CCEaseCircleActionOut, CCJumpTiles3D, CCEaseSineOut, CCEaseCircleActionIn, CCFlipY, CCBEaseInstant, CCEaseSineIn, CCWaves, CCWavesTiles3D, CCBRotateYTo, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCBRotateXTo, CCLiquid, CCFlipX, CCEaseQuinticActionOut, CCEaseExponentialOut, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCEaseQuinticActionIn, CCShaky3D, CCEaseExponentialIn, CCBSoundEffect, CCRepeat, CCRemoveSelf, CCEaseQuarticActionInOut, CCAccelAmplitude, CCRipple3D, CCEaseInOut, CCBSetSpriteFrame, CCCardinalSplineTo, CCToggleVisibility, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCFadeOutTRTiles, CCSequence, CCEaseQuarticActionIn, CCOrbitCamera, CCLens3D, CCHide, CCEaseIn, CCEaseQuadraticActionInOut, CCShuffleTiles, CCFlipY3D, CCEaseQuadraticActionOut, CCShow, CCFlipX3D, CCProgressFromTo, CCActionTween, CCShatteredTiles3D, CCEaseQuadraticActionIn, CCActionInstant, CCActionEase, CCWaves3D, CCProgressTo, CCPageTurn3D, CCShakyTiles3D, and CCEaseBezierAction.

local update ( local  time)

virtual

called once per frame.

time a value between 0 and 1

For example:

• 0 means that the action just started
• 0.5 means that the action is in the middle
• 1 means that the action is over

Reimplemented from CCObject.

Reimplemented in CCTargetedAction, CCAnimate, CCReverseTime, CCDelayTime, CCTintBy, CCTintTo, CCFadeTo, CCFadeOut, CCFadeIn, CCBlink, CCScaleTo, CCBezierBy, CCEaseBackInOut, CCEaseBackOut, CCJumpBy, CCEaseBackIn, CCEaseBounceInOut, CCSkewTo, CCEaseBounceOut, CCEaseBounceIn, CCMoveBy, CCEaseElasticInOut, CCRotateBy, CCEaseElasticOut, CCEaseCubicActionInOut, CCRotateTo, CCEaseElasticIn, CCCallFunc, CCEaseCubicActionOut, CCSplitCols, CCEaseCubicActionIn, CCSpawn, CCSplitRows, CCEaseCircleActionInOut, CCEaseSineInOut, CCTwirl, CCPlace, CCEaseCircleActionOut, CCJumpTiles3D, CCEaseSineOut, CCEaseCircleActionIn, CCFlipY, CCBEaseInstant, CCEaseSineIn, CCWaves, CCWavesTiles3D, CCBRotateYTo, CCEaseQuinticActionInOut, CCEaseExponentialInOut, CCBRotateXTo, CCLiquid, CCFlipX, CCEaseQuinticActionOut, CCEaseExponentialOut, CCTurnOffTiles, CCBRotateTo, CCDeccelAmplitude, CCEaseQuinticActionIn, CCShaky3D, CCEaseExponentialIn, CCBSoundEffect, CCRepeat, CCRemoveSelf, CCEaseQuarticActionInOut, CCAccelAmplitude, CCRipple3D, CCEaseInOut, CCBSetSpriteFrame, CCCardinalSplineTo, CCToggleVisibility, CCEaseQuarticActionOut, CCEaseOut, CCAccelDeccelAmplitude, CCFadeOutTRTiles, CCSequence, CCEaseQuarticActionIn, CCOrbitCamera, CCLens3D, CCHide, CCEaseIn, CCEaseQuadraticActionInOut, CCShuffleTiles, CCFlipY3D, CCEaseQuadraticActionOut, CCShow, CCFlipX3D, CCProgressFromTo, CCActionTween, CCShatteredTiles3D, CCEaseQuadraticActionIn, CCActionInstant, CCActionEase, CCWaves3D, CCProgressTo, CCPageTurn3D, CCShakyTiles3D, and CCEaseBezierAction.

Member Data Documentation

int m_nTag

protected

The action tag.

An identifier of the action

var m_nTag

protected

The action tag.

An identifier of the action

local m_nTag

protected

The action tag.

An identifier of the action

CCNode* m_pOriginalTarget

protected

var m_pOriginalTarget

protected

local m_pOriginalTarget

protected

CCNode* m_pTarget

protected

The "target".

The target will be set with the 'startWithTarget' method. When the 'stop' method is called, target will be set to nil. The target is 'assigned', it is not 'retained'.

var m_pTarget

protected

The "target".

The target will be set with the 'startWithTarget' method. When the 'stop' method is called, target will be set to nil. The target is 'assigned', it is not 'retained'.

local m_pTarget

protected

The "target".

The target will be set with the 'startWithTarget' method. When the 'stop' method is called, target will be set to nil. The target is 'assigned', it is not 'retained'.

---

The documentation for this class was generated from the following file:

• /Users/cocos2d/MyWork/cocos2d-x/cocos2dx/actions/CCAction.h
