CCNode Class Reference

CCNode is the main element. More...

#include <CCNode.h>

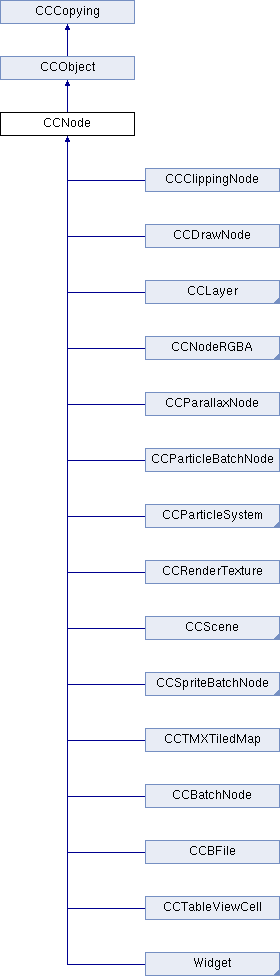

Inheritance diagram for CCNode:

Public Member Functions
virtual CCCamera *	getCamera ()
	Returns a camera object that lets you move the node using a gluLookAt. More...
local	getCamera ()
	Returns a camera object that lets you move the node using a gluLookAt. More...
virtual bool	isRunning ()
	Returns whether or not the node accepts event callbacks. More...
local	isRunning ()
	Returns whether or not the node accepts event callbacks. More...
virtual void	cleanup (void)
	Stops all running actions and schedulers. More...
virtual void	draw (void)
	Override this method to draw your own node. More...
local	draw ()
	Override this method to draw your own node. More...
virtual void	visit (void)
	Visits this node's children and draw them recursively. More...
local	visit ()
	Visits this node's children and draw them recursively. More...
CCRect	boundingBox (void)
	Returns a "local" axis aligned bounding box of the node. More...
local	boundingBox ()
	Returns a "local" axis aligned bounding box of the node. More...
Setters & Getters for Graphic Peroperties
virtual void	setZOrder (int zOrder)
	Sets the Z order which stands for the drawing order, and reorder this node in its parent's children array. More...
virtual void	_setZOrder (int z)
	Sets the z order which stands for the drawing order. More...
local	_setZOrder ( local z)
	Sets the z order which stands for the drawing order. More...
virtual int	getZOrder ()
	Gets the Z order of this node. More...
local	getZOrder ()
	Gets the Z order of this node. More...
virtual void	setVertexZ (float vertexZ)
	Sets the real OpenGL Z vertex. More...
local	setVertexZ ( local vertexZ)
	Sets the real OpenGL Z vertex. More...
virtual float	getVertexZ ()
	Gets OpenGL Z vertex of this node. More...
local	getVertexZ ()
	Gets OpenGL Z vertex of this node. More...
virtual void	setScaleX (float fScaleX)
	Changes the scale factor on X axis of this node. More...
local	setScaleX ( local fScaleX)
	Changes the scale factor on X axis of this node. More...
virtual float	getScaleX ()
	Returns the scale factor on X axis of this node. More...
local	getScaleX ()
	Returns the scale factor on X axis of this node. More...
virtual void	setScaleY (float fScaleY)
	Changes the scale factor on Y axis of this node. More...
local	setScaleY ( local fScaleY)
	Changes the scale factor on Y axis of this node. More...
virtual float	getScaleY ()
	Returns the scale factor on Y axis of this node. More...
virtual void	setScale (float scale)
	Changes both X and Y scale factor of the node. More...
local	setScale ( local scale)
	Changes both X and Y scale factor of the node. More...
virtual float	getScale ()
	Gets the scale factor of the node, when X and Y have the same scale factor. More...
virtual void	setScale (float fScaleX, float fScaleY)
	Changes both X and Y scale factor of the node. More...
local	setScale ( local fScaleX, local fScaleY)
	Changes both X and Y scale factor of the node. More...
virtual void	setPosition (const CCPoint &position)
	Changes the position (x,y) of the node in OpenGL coordinates. More...
virtual const CCPoint &	getPosition ()
	Gets the position (x,y) of the node in OpenGL coordinates. More...
local	getPosition ()
	Gets the position (x,y) of the node in OpenGL coordinates. More...
virtual void	setPosition (float x, float y)
	Sets position in a more efficient way. More...
local	setPosition ( local x, local y)
	Sets position in a more efficient way. More...
virtual void	getPosition (float *x, float *y)
	Gets position in a more efficient way, returns two number instead of a CCPoint object. More...
local	getPosition ( local x, local y)
	Gets position in a more efficient way, returns two number instead of a CCPoint object. More...
virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...
local	setPositionX ( local x)
	Gets/Sets x or y coordinate individually for position. More...
virtual float	getPositionX (void)
local	getPositionX ()
virtual void	setPositionY (float y)
virtual float	getPositionY (void)
virtual void	setSkewX (float fSkewX)
	Changes the X skew angle of the node in degrees. More...
local	setSkewX ( local fSkewX)
	Changes the X skew angle of the node in degrees. More...
virtual float	getSkewX ()
	Returns the X skew angle of the node in degrees. More...
virtual void	setSkewY (float fSkewY)
	Changes the Y skew angle of the node in degrees. More...
local	setSkewY ( local fSkewY)
	Changes the Y skew angle of the node in degrees. More...
virtual float	getSkewY ()
	Returns the Y skew angle of the node in degrees. More...
virtual void	setAnchorPoint (const CCPoint &anchorPoint)
	Sets the anchor point in percent. More...
local	setAnchorPoint ( local anchorPoint)
	Sets the anchor point in percent. More...
virtual const CCPoint &	getAnchorPoint ()
	Returns the anchor point in percent. More...
local	getAnchorPoint ()
	Returns the anchor point in percent. More...
virtual const CCPoint &	getAnchorPointInPoints ()
	Returns the anchorPoint in absolute pixels. More...
virtual void	setContentSize (const CCSize &contentSize)
	Sets the untransformed size of the node. More...
local	setContentSize ( local contentSize)
	Sets the untransformed size of the node. More...
virtual const CCSize &	getContentSize () const
	Returns the untransformed size of the node. More...
local	getContentSize ()
	Returns the untransformed size of the node. More...
virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...
local	setVisible ( local visible)
	Sets whether the node is visible. More...
virtual bool	isVisible ()
	Determines if the node is visible. More...
virtual void	setRotation (float fRotation)
	Sets the rotation (angle) of the node in degrees. More...
local	setRotation ( local fRotation)
	Sets the rotation (angle) of the node in degrees. More...
virtual float	getRotation ()
	Returns the rotation of the node in degrees. More...
virtual void	setRotationX (float fRotaionX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...
local	setRotationX ( local fRotaionX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...
virtual float	getRotationX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
virtual void	setRotationY (float fRotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
local	setRotationY ( local fRotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual float	getRotationY ()
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual void	setOrderOfArrival (unsigned int uOrderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...
local	setOrderOfArrival ( local uOrderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...
virtual unsigned int	getOrderOfArrival ()
	Returns the arrival order, indecates which children is added previously. More...
virtual void	setGLServerState (ccGLServerState glServerState)
	Sets the state of OpenGL server side. More...
local	setGLServerState ( local glServerState)
	Sets the state of OpenGL server side. More...
virtual ccGLServerState	getGLServerState ()
	Returns the state of OpenGL server side. More...
local	getGLServerState ()
	Returns the state of OpenGL server side. More...
virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...
local	ignoreAnchorPointForPosition ( local ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...
virtual bool	isIgnoreAnchorPointForPosition ()
	Gets whether the anchor point will be (0,0) when you position this node. More...
Children and Parent
virtual void	addChild (CCNode *child)
	Adds a child to the container with z-order as 0. More...
virtual void	addChild (CCNode *child, int zOrder)
	Adds a child to the container with a z-order. More...
local	addChild ( local child, local zOrder)
	Adds a child to the container with a z-order. More...
virtual void	addChild (CCNode *child, int zOrder, int tag)
	Adds a child to the container with z order and tag. More...
local	addChild ( local child, local zOrder, local tag)
	Adds a child to the container with z order and tag. More...
virtual CCNode *	getChildByTag (int tag)
	Gets a child from the container with its tag. More...
virtual CCArray *	getChildren ()
	Return an array of children. More...
local	getChildren ()
	Return an array of children. More...
virtual unsigned int	getChildrenCount (void) const
	Get the amount of children. More...
local	getChildrenCount ()
	Get the amount of children. More...
virtual void	setParent (CCNode *parent)
	Sets the parent node. More...
local	setParent ( local parent)
	Sets the parent node. More...
virtual CCNode *	getParent ()
	Returns a pointer to the parent node. More...
virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...
virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...
local	removeFromParentAndCleanup ( local cleanup)
	Removes this node itself from its parent node. More...
virtual void	removeChild (CCNode *child)
	Removes a child from the container with a cleanup. More...
virtual void	removeChild (CCNode *child, bool cleanup)
	Removes a child from the container. More...
local	removeChild ( local child, local cleanup)
	Removes a child from the container. More...
virtual void	removeChildByTag (int tag)
	Removes a child from the container by tag value with a cleanup. More...
local	removeChildByTag ( local tag)
	Removes a child from the container by tag value with a cleanup. More...
virtual void	removeChildByTag (int tag, bool cleanup)
	Removes a child from the container by tag value. More...
local	removeChildByTag ( local tag, local cleanup)
	Removes a child from the container by tag value. More...
virtual void	removeAllChildren ()
	Removes all children from the container with a cleanup. More...
virtual void	removeAllChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
virtual void	reorderChild (CCNode *child, int zOrder)
	Reorders a child according to a new z value. More...
virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...
Grid object for effects
virtual CCGridBase *	getGrid ()
	Returns a grid object that is used when applying effects. More...
virtual void	setGrid (CCGridBase *pGrid)
	Changes a grid object that is used when applying effects. More...
local	setGrid ( local pGrid)
	Changes a grid object that is used when applying effects. More...
Tag & User data
virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...
local	getTag ()
	Returns a tag that is used to identify the node easily. More...
virtual void	setTag (int nTag)
	Changes the tag that is used to identify the node easily. More...
local	setTag ( local nTag)
	Changes the tag that is used to identify the node easily. More...
virtual void *	getUserData ()
	Returns a custom user data pointer. More...
virtual void	setUserData (void *pUserData)
	Sets a custom user data pointer. More...
local	setUserData ( local pUserData)
	Sets a custom user data pointer. More...
virtual CCObject *	getUserObject ()
	Returns a user assigned CCObject. More...
local	getUserObject ()
	Returns a user assigned CCObject. More...
virtual void	setUserObject (CCObject *pUserObject)
	Returns a user assigned CCObject. More...
local	setUserObject ( local pUserObject)
	Returns a user assigned CCObject. More...
Shader Program
virtual CCGLProgram *	getShaderProgram ()
	Return the shader program currently used for this node. More...
virtual void	setShaderProgram (CCGLProgram *pShaderProgram)
	Sets the shader program for this node. More...
local	setShaderProgram ( local pShaderProgram)
	Sets the shader program for this node. More...
Script Bindings for lua
virtual void	registerScriptHandler (int handler)
	Registers a script function that will be called in onEnter() & onExit() seires functions. More...
local	registerScriptHandler ( local handler)
	Registers a script function that will be called in onEnter() & onExit() seires functions. More...
virtual void	unregisterScriptHandler (void)
	Unregisters a script function that will be called in onEnter() & onExit() series functions. More...
local	unregisterScriptHandler ()
	Unregisters a script function that will be called in onEnter() & onExit() series functions. More...
int	getScriptHandler ()
	Gets script handler for onEnter/onExit event. More...
void	scheduleUpdateWithPriorityLua (int nHandler, int priority)
	Schedules for lua script. More...
local	scheduleUpdateWithPriorityLua ( local nHandler, local priority)
	Schedules for lua script. More...
Event Callbacks
virtual void	onEnter ()
	Event callback that is invoked every time when CCNode enters the 'stage'. More...
virtual void	onEnterTransitionDidFinish ()
	Event callback that is invoked when the CCNode enters in the 'stage'. More...
virtual void	onExit ()
	Event callback that is invoked every time the CCNode leaves the 'stage'. More...
virtual void	onExitTransitionDidStart ()
	Event callback that is called every time the CCNode leaves the 'stage'. More...
Actions
virtual void	setActionManager (CCActionManager *actionManager)
	Sets the CCActionManager object that is used by all actions. More...
local	setActionManager ( local actionManager)
	Sets the CCActionManager object that is used by all actions. More...
virtual CCActionManager *	getActionManager ()
	Gets the CCActionManager object that is used by all actions. More...
local	getActionManager ()
	Gets the CCActionManager object that is used by all actions. More...
CCAction *	runAction (CCAction *action)
	Executes an action, and returns the action that is executed. More...
local	runAction ( local action)
	Executes an action, and returns the action that is executed. More...
void	stopAllActions (void)
	Stops and removes all actions from the running action list . More...
local	stopAllActions ()
	Stops and removes all actions from the running action list . More...
void	stopAction (CCAction *action)
	Stops and removes an action from the running action list. More...
local	stopAction ( local action)
	Stops and removes an action from the running action list. More...
void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...
local	stopActionByTag ( local tag)
	Removes an action from the running action list by its tag. More...
CCAction *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...
local	getActionByTag ( local tag)
	Gets an action from the running action list by its tag. More...
unsigned int	numberOfRunningActions (void)
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
local	numberOfRunningActions ()
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
Scheduler and Timer
virtual void	setScheduler (CCScheduler *scheduler)
	Sets a CCScheduler object that is used to schedule all "updates" and timers. More...
local	setScheduler ( local scheduler)
	Sets a CCScheduler object that is used to schedule all "updates" and timers. More...
virtual CCScheduler *	getScheduler ()
	Gets a CCSheduler object. More...
local	getScheduler ()
	Gets a CCSheduler object. More...
bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...
void	scheduleUpdate (void)
	Schedules the "update" method. More...
void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...
void	unscheduleUpdate (void)
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...
void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...
void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...
void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...
void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...
void	unscheduleAllSelectors (void)
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...
local	unscheduleAllSelectors ()
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...
void	resumeSchedulerAndActions (void)
	Resumes all scheduled selectors and actions. More...
void	pauseSchedulerAndActions (void)
	Pauses all scheduled selectors and actions. More...
virtual void	update (float delta)
Transformations
void	transform (void)
	Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes. More...
void	transformAncestors (void)
	Performs OpenGL view-matrix transformation of it's ancestors. More...
local	transformAncestors ()
	Performs OpenGL view-matrix transformation of it's ancestors. More...
virtual void	updateTransform (void)
	Calls children's updateTransform() method recursively. More...
local	updateTransform ()
	Calls children's updateTransform() method recursively. More...
virtual CCAffineTransform	nodeToParentTransform (void)
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...
local	nodeToParentTransform ()
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...
virtual CCAffineTransform	parentToNodeTransform (void)
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
local	parentToNodeTransform ()
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
virtual CCAffineTransform	nodeToWorldTransform (void)
	Returns the world affine transform matrix. More...
local	nodeToWorldTransform ()
	Returns the world affine transform matrix. More...
virtual CCAffineTransform	worldToNodeTransform (void)
	Returns the inverse world affine transform matrix. More...
Coordinate Converters
CCPoint	convertToNodeSpace (const CCPoint &worldPoint)
	Converts a Point to node (local) space coordinates. More...
local	convertToNodeSpace ( local worldPoint)
	Converts a Point to node (local) space coordinates. More...
CCPoint	convertToWorldSpace (const CCPoint &nodePoint)
	Converts a Point to world space coordinates. More...
local	convertToWorldSpace ( local nodePoint)
	Converts a Point to world space coordinates. More...
CCPoint	convertToNodeSpaceAR (const CCPoint &worldPoint)
	Converts a Point to node (local) space coordinates. More...
local	convertToNodeSpaceAR ( local worldPoint)
	Converts a Point to node (local) space coordinates. More...
CCPoint	convertToWorldSpaceAR (const CCPoint &nodePoint)
	Converts a local Point to world space coordinates.The result is in Points. More...
local	convertToWorldSpaceAR ( local nodePoint)
	Converts a local Point to world space coordinates.The result is in Points. More...
CCPoint	convertTouchToNodeSpace (CCTouch *touch)
	convenience methods which take a CCTouch instead of CCPoint More...
CCPoint	convertTouchToNodeSpaceAR (CCTouch *touch)
	converts a CCTouch (world coordinates) into a local coordinate. More...
local	convertTouchToNodeSpaceAR ( local touch)
	converts a CCTouch (world coordinates) into a local coordinate. More...
void	setAdditionalTransform (const CCAffineTransform &additionalTransform)
	Sets the additional transform. More...
local	setAdditionalTransform ( local additionalTransform)
	Sets the additional transform. More...
component functions
CCComponent *	getComponent (const char *pName) const
	gets a component by its name More...
virtual bool	addComponent (CCComponent *pComponent)
	adds a component More...
virtual bool	removeComponent (const char *pName)
	removes a component by its name More...
local	removeComponent ( local pName)
	removes a component by its name More...
virtual bool	removeComponent (CCComponent *pComponent)
	removes a component by its pointer More...
virtual void	removeAllComponents ()
	removes all components More...
local	removeAllComponents ()
	removes all components More...
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)
Public Member Functions inherited from CCCopying
virtual CCObject *	copyWithZone (CCZone *pZone)

Protected Attributes
float	m_fRotationX
	rotation angle on x-axis More...
float	m_fRotationY
	rotation angle on y-axis More...
local	m_fRotationY
	rotation angle on y-axis More...
float	m_fScaleX
	scaling factor on x-axis More...
local	m_fScaleX
	scaling factor on x-axis More...
float	m_fScaleY
	scaling factor on y-axis More...
local	m_fScaleY
	scaling factor on y-axis More...
float	m_fVertexZ
	OpenGL real Z vertex. More...
local	m_fVertexZ
	OpenGL real Z vertex. More...
CCPoint	m_obPosition
	position of the node More...
local	m_obPosition
	position of the node More...
float	m_fSkewX
	skew angle on x-axis More...
local	m_fSkewX
	skew angle on x-axis More...
float	m_fSkewY
	skew angle on y-axis More...
local	m_fSkewY
	skew angle on y-axis More...
CCPoint	m_obAnchorPointInPoints
	anchor point in points More...
local	m_obAnchorPointInPoints
	anchor point in points More...
CCPoint	m_obAnchorPoint
	anchor point normalized (NOT in points) More...
local	m_obAnchorPoint
	anchor point normalized (NOT in points) More...
CCSize	m_obContentSize
	untransformed size of the node More...
local	m_obContentSize
	untransformed size of the node More...
CCAffineTransform	m_sAdditionalTransform
	transform More...
CCAffineTransform	m_sTransform
	transform More...
local	m_sTransform
	transform More...
CCAffineTransform	m_sInverse
	transform More...
local	m_sInverse
	transform More...
CCCamera *	m_pCamera
	a camera More...
local	m_pCamera
	a camera More...
CCGridBase *	m_pGrid
	a grid More...
local	m_pGrid
	a grid More...
int	m_nZOrder
	z-order value that affects the draw order More...
local	m_nZOrder
	z-order value that affects the draw order More...
CCArray *	m_pChildren
	array of children nodes More...
local	m_pChildren
	array of children nodes More...
CCNode *	m_pParent
	weak reference to parent node More...
local	m_pParent
	weak reference to parent node More...
int	m_nTag
	a tag. Can be any number you assigned just to identify this node More...
local	m_nTag
	a tag. Can be any number you assigned just to identify this node More...
void *	m_pUserData
	A user assingned void pointer, Can be point to any cpp object. More...
local	m_pUserData
	A user assingned void pointer, Can be point to any cpp object. More...
CCObject *	m_pUserObject
	A user assigned CCObject. More...
local	m_pUserObject
	A user assigned CCObject. More...
CCGLProgram *	m_pShaderProgram
	OpenGL shader. More...
local	m_pShaderProgram
	OpenGL shader. More...
ccGLServerState	m_eGLServerState
	OpenGL servier side state. More...
local	m_eGLServerState
	OpenGL servier side state. More...
unsigned int	m_uOrderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...
local	m_uOrderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...
CCScheduler *	m_pScheduler
	scheduler used to schedule timers and updates More...
local	m_pScheduler
	scheduler used to schedule timers and updates More...
CCActionManager *	m_pActionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...
bool	m_bRunning
	is running More...
local	m_bRunning
	is running More...
bool	m_bTransformDirty
	transform dirty flag More...
local	m_bTransformDirty
	transform dirty flag More...
bool	m_bInverseDirty
	transform dirty flag More...
local	m_bInverseDirty
	transform dirty flag More...
bool	m_bAdditionalTransformDirty
	The flag to check whether the additional transform is dirty. More...
local	m_bAdditionalTransformDirty
	The flag to check whether the additional transform is dirty. More...
bool	m_bVisible
	is this node visible More...
local	m_bVisible
	is this node visible More...
bool	m_bIgnoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the CCNode, false otherwise. More...
local	m_bIgnoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the CCNode, false otherwise. More...
bool	m_bReorderChildDirty
	children order dirty flag More...
int	m_nScriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...
local	m_nScriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...
int	m_nUpdateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...
local	m_nUpdateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...
ccScriptType	m_eScriptType
	type of script binding, lua or javascript More...
local	m_eScriptType
	type of script binding, lua or javascript More...
CCComponentContainer *	m_pComponentContainer
	Dictionary of components. More...
Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Constructor, Distructor and Initializers
	CCNode (void)
	Default constructor. More...
	CCNode ()
	Default constructor. More...
virtual	~CCNode (void)
	Default destructor. More...
virtual bool	init ()
	Initializes the instance of CCNode. More...
local	init ()
	Initializes the instance of CCNode. More...
const char *	description (void)
	Gets the description string. More...
local	description ()
	Gets the description string. More...
static CCNode *	create (void)
	Allocates and initializes a node. More...

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

CCNode is the main element.

Anything that gets drawn or contains things that get drawn is a CCNode. The most popular CCNodes are: CCScene, CCLayer, CCSprite, CCMenu.

The main features of a CCNode are:

• They can contain other CCNode nodes (addChild, getChildByTag, removeChild, etc)
• They can schedule periodic callback (schedule, unschedule, etc)
• They can execute actions (runAction, stopAction, etc)

Some CCNode nodes provide extra functionality for them or their children.

Subclassing a CCNode usually means (one/all) of:

• overriding init to initialize resources and schedule callbacks
• create callbacks to handle the advancement of time
• overriding draw to render the node

Features of CCNode:

• position
• scale (x, y)
• rotation (in degrees, clockwise)
• CCCamera (an interface to gluLookAt )
• CCGridBase (to do mesh transformations)
• anchor point
• size
• visible
• z-order
• openGL z position

Default values:

• rotation: 0
• position: (x=0,y=0)
• scale: (x=1,y=1)
• contentSize: (x=0,y=0)
• anchorPoint: (x=0,y=0)

Limitations:

• A CCNode is a "void" object. It doesn't have a texture

Order in transformations with grid disabled

1. The node will be translated (position)
2. The node will be rotated (rotation)
3. The node will be scaled (scale)
4. The node will be moved according to the camera values (camera)

Order in transformations with grid enabled

1. The node will be translated (position)
2. The node will be rotated (rotation)
3. The node will be scaled (scale)
4. The grid will capture the screen
5. The node will be moved according to the camera values (camera)
6. The grid will render the captured screen

Camera:

• Each node has a camera. By default it points to the center of the CCNode.

---

The documentation for this class was generated from the following file:

• /Users/cocos2d/MyWork/cocos2d-x/cocos2dx/base_nodes/CCNode.h
