#include <CCActionTiledGrid.h>

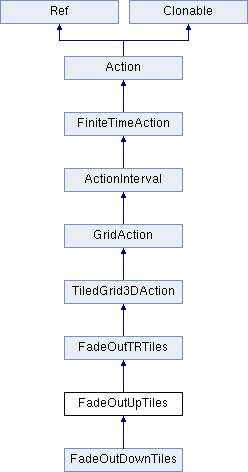

Inheritance diagram for FadeOutUpTiles:

Public Member Functions
virtual void	transformTile (const Vec2 &pos, float distance) override
	Show part of the tile. More...

var	transformTile ( var pos, var distance)
	Show part of the tile. More...

local	transformTile ( local pos, local distance)
	Show part of the tile. More...

virtual FadeOutUpTiles *	clone () const override
	Returns a clone of action. More...

virtual float	testFunc (const Size &pos, float time) override
	Calculate the percentage a tile should be shown. More...

Public Member Functions inherited from FadeOutTRTiles
void	turnOnTile (const Vec2 &pos)
	Show the tile at specified position. More...

local	turnOnTile ( local pos)
	Show the tile at specified position. More...

void	turnOffTile (const Vec2 &pos)
	Hide the tile at specified position. More...

local	turnOffTile ( local pos)
	Hide the tile at specified position. More...

virtual void	update (float time) override
	Called once per frame. More...

Public Member Functions inherited from TiledGrid3DAction
Quad3	getTile (const Vec2 &position) const
	Get the tile that belongs to a certain position of the grid. More...

Quad3	tile (const Vec2 &position)
Quad3	getOriginalTile (const Vec2 &position) const
	Get the non-transformed tile that belongs to a certain position of the grid. More...

Quad3	originalTile (const Vec2 &position)
void	setTile (const Vec2 &position, const Quad3 &coords)
	Set a new tile to a certain position of the grid. More...

virtual GridBase *	getGrid () override
	returns the grid More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	Returns a new action that performs the exactly the reverse action. More...

var	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static FadeOutUpTiles *	create (float duration, const Size &gridSize)
	Create the action with the grid size and the duration. More...

local	create ( local duration, local gridSize)
	Create the action with the grid size and the duration. More...

Static Public Member Functions inherited from FadeOutTRTiles
static FadeOutTRTiles *	create (float duration, const Size &gridSize)
	Create the action with the grid size and the duration. More...

var	create ( var duration, var gridSize)
	Create the action with the grid size and the duration. More...

local	create ( local duration, local gridSize)
	Create the action with the grid size and the duration. More...

Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DAction *	create (float duration, const Size &gridSize)
	Create the action with size and duration. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: FadeOutUpTiles() {} virtual ~FadeOutUpTiles() {}private: CC_DISALLOW_COPY_AND_ASSIGN(FadeOutUpTiles)
Public Attributes inherited from FadeOutTRTiles
CC_CONSTRUCTOR_ACCESS	__pad0__: FadeOutTRTiles() {} virtual ~FadeOutTRTiles() {}private: CC_DISALLOW_COPY_AND_ASSIGN(FadeOutTRTiles)
Public Attributes inherited from GridAction
CC_CONSTRUCTOR_ACCESS	__pad0__: GridAction() {} virtual ~GridAction() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Size &	gridSize
var	gridSize
local	gridSize
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from GridAction
void	cacheTargetAsGridNode ()
var	cacheTargetAsGridNode ()
local	cacheTargetAsGridNode ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Protected Attributes inherited from GridAction
Size	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Detailed Description

FadeOutUpTiles action.

Fades out the target node with many tiles from bottom to top.

Member Function Documentation

virtual FadeOutUpTiles* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

static FadeOutUpTiles* create	(	float	duration,
		const Size &	gridSize
	)

static

Create the action with the grid size and the duration.

Parameters

duration	Specify the duration of the FadeOutUpTiles action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation success, return a pointer of FadeOutUpTiles action; otherwise, return nil.

var create	(	var	duration,
		var	gridSize
	)

static

Create the action with the grid size and the duration.

Parameters

duration	Specify the duration of the FadeOutUpTiles action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation success, return a pointer of FadeOutUpTiles action; otherwise, return nil.

local create	(	local	duration,
		local	gridSize
	)

static

Create the action with the grid size and the duration.

Parameters

duration	Specify the duration of the FadeOutUpTiles action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation success, return a pointer of FadeOutUpTiles action; otherwise, return nil.

virtual float testFunc	(	const Size &	pos,
		float	time
	)

overridevirtual

Calculate the percentage a tile should be shown.

Parameters

pos	The position index of the tile.
time	The current percentage of the action.

Returns: Return the percentage the tile should be shown.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

var testFunc	(	var	pos,
		var	time
	)

overridevirtual

Calculate the percentage a tile should be shown.

Parameters

pos	The position index of the tile.
time	The current percentage of the action.

Returns: Return the percentage the tile should be shown.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

local testFunc	(	local	pos,
		local	time
	)

overridevirtual

Calculate the percentage a tile should be shown.

Parameters

pos	The position index of the tile.
time	The current percentage of the action.

Returns: Return the percentage the tile should be shown.

Reimplemented from FadeOutTRTiles.

Reimplemented in FadeOutDownTiles.

virtual void transformTile	(	const Vec2 &	pos,
		float	distance
	)

overridevirtual

Show part of the tile.

Parameters

pos	The position index of the tile should be shown.
distance	The percentage that the tile should be shown.

Reimplemented from FadeOutTRTiles.

var transformTile	(	var	pos,
		var	distance
	)

overridevirtual

Show part of the tile.

Parameters

pos	The position index of the tile should be shown.
distance	The percentage that the tile should be shown.

Reimplemented from FadeOutTRTiles.

local transformTile	(	local	pos,
		local	distance
	)

overridevirtual

Show part of the tile.

Parameters

pos	The position index of the tile should be shown.
distance	The percentage that the tile should be shown.

Reimplemented from FadeOutTRTiles.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionTiledGrid.h

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
