Skews a Node object to given angles by modifying it's skewX and skewY attributes. More...

#include <CCActionInterval.h>

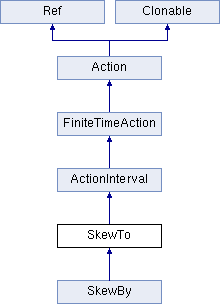

Inheritance diagram for SkewTo:

Public Member Functions
virtual SkewTo *	clone () const override
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual SkewTo *	reverse (void) const override
	Returns a new action that performs the exactly the reverse action. More...

var	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

virtual void	update (float time) override
virtual	~SkewTo ()
bool	initWithDuration (float t, float sx, float sy)
var	initWithDuration ( var t, var sx, var sy)
local	initWithDuration ( local t, local sx, local sy)
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static SkewTo *	create (float t, float sx, float sy)
	Creates the action. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: SkewTo()
local	__pad0__: SkewTo()
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
float	_skewX
local	_skewX
float	_skewY
var	_skewY
local	_skewY
float	_startSkewX
var	_startSkewX
local	_startSkewX
float	_startSkewY
var	_startSkewY
local	_startSkewY
float	_endSkewX
var	_endSkewX
local	_endSkewX
float	_endSkewY
var	_endSkewY
local	_endSkewY
float	_deltaX
var	_deltaX
local	_deltaX
float	_deltaY
var	_deltaY
local	_deltaY
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

Skews a Node object to given angles by modifying it's skewX and skewY attributes.

Since: v1.0

Constructor & Destructor Documentation

virtual ~SkewTo ( )

inlinevirtual

var ~SkewTo ( )

inlinevirtual

local ~SkewTo ( )

inlinevirtual

Member Function Documentation

virtual SkewTo* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

static SkewTo* create	(	float	t,
		float	sx,
		float	sy
	)

static

Creates the action.

Parameters

t	Duration time, in seconds.
sx	Skew x angle.
sy	Skew y angle.

Returns: An autoreleased SkewTo object.

var create	(	var	t,
		var	sx,
		var	sy
	)

static

Creates the action.

Parameters

t	Duration time, in seconds.
sx	Skew x angle.
sy	Skew y angle.

Returns: An autoreleased SkewTo object.

local create	(	local	t,
		local	sx,
		local	sy
	)

static

Creates the action.

Parameters

t	Duration time, in seconds.
sx	Skew x angle.
sy	Skew y angle.

Returns: An autoreleased SkewTo object.

bool initWithDuration	(	float	t,
		float	sx,
		float	sy
	)

Parameters

t	In seconds.

var initWithDuration	(	var	t,
		var	sx,
		var	sy
	)

Parameters

t	In seconds.

local initWithDuration	(	local	t,
		local	sx,
		local	sy
	)

Parameters

t	In seconds.

virtual SkewTo* reverse ( void ) const

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

var reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

local reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

virtual void startWithTarget ( Node * target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

var startWithTarget ( var target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

local startWithTarget ( local target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in SkewBy.

virtual void update ( float time )

overridevirtual

Parameters

time	In seconds.

Reimplemented from Action.

var update ( var time )

overridevirtual

Parameters

time	In seconds.

Reimplemented from Action.

local update ( local time )

overridevirtual

Parameters

time	In seconds.

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

float _deltaX

protected

var _deltaX

protected

local _deltaX

protected

float _deltaY

protected

var _deltaY

protected

local _deltaY

protected

float _endSkewX

protected

var _endSkewX

protected

local _endSkewX

protected

float _endSkewY

protected

var _endSkewY

protected

local _endSkewY

protected

float _skewX

protected

var _skewX

protected

local _skewX

protected

float _skewY

protected

var _skewY

protected

local _skewY

protected

float _startSkewX

protected

var _startSkewX

protected

local _startSkewX

protected

float _startSkewY

protected

var _startSkewY

protected

local _startSkewY

protected

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionInterval.h
