This action simulates a page turn from the bottom right hand corner of the screen. More...

#include <CCActionPageTurn3D.h>

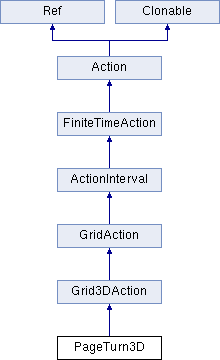

Inheritance diagram for PageTurn3D:

Public Member Functions
virtual GridBase *	getGrid () override
	Get the pointer of GridBase. More...

virtual PageTurn3D *	clone () const override
	Returns a clone of action. More...

virtual void	update (float time) override
	Called once per frame. More...

var	update ( var time)
	Called once per frame. More...

local	update ( local time)
	Called once per frame. More...

Public Member Functions inherited from Grid3DAction
Vec3	getVertex (const Vec2 &position) const
	Get the vertex that belongs to certain position in the grid. More...

var	vertex ( var position)
	Get the vertex that belongs to certain position in the grid. More...

Vec3	vertex (const Vec2 &position)
Vec3	getOriginalVertex (const Vec2 &position) const
	Get the non-transformed vertex that belongs to certain position in the grid. More...

Vec3	originalVertex (const Vec2 &position)
void	setVertex (const Vec2 &position, const Vec3 &vertex)
	Set a new vertex to a certain position of the grid. More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	Returns a new action that performs the exactly the reverse action. More...

var	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static PageTurn3D *	create (float duration, const Size &gridSize)
	Create an action with duration, grid size. More...

Additional Inherited Members
Public Attributes inherited from GridAction
CC_CONSTRUCTOR_ACCESS	__pad0__: GridAction() {} virtual ~GridAction() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Size &	gridSize
var	gridSize
local	gridSize
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from GridAction
void	cacheTargetAsGridNode ()
var	cacheTargetAsGridNode ()
local	cacheTargetAsGridNode ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Protected Attributes inherited from GridAction
Size	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Detailed Description

This action simulates a page turn from the bottom right hand corner of the screen.

It's not much use by itself but is used by the PageTurnTransition. Based on an original paper by L Hong et al. http://www.parc.com/publication/1638/turning-pages-of-3d-electronic-books.html

Since: v0.8.2

Member Function Documentation

virtual PageTurn3D* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from Grid3DAction.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from Grid3DAction.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from Grid3DAction.

static PageTurn3D* create	(	float	duration,
		const Size &	gridSize
	)

static

Create an action with duration, grid size.

Parameters

duration	Specify the duration of the PageTurn3D action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation sucess, return a pointer of PageTurn3D action; otherwise, return nil.

var create	(	var	duration,
		var	gridSize
	)

static

Create an action with duration, grid size.

Parameters

duration	Specify the duration of the PageTurn3D action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation sucess, return a pointer of PageTurn3D action; otherwise, return nil.

local create	(	local	duration,
		local	gridSize
	)

static

Create an action with duration, grid size.

Parameters

duration	Specify the duration of the PageTurn3D action. It's a value in seconds.
gridSize	Specify the size of the grid.

Returns: If the creation sucess, return a pointer of PageTurn3D action; otherwise, return nil.

virtual GridBase* getGrid ( )

overridevirtual

Get the pointer of GridBase.

Returns: The pointer of GridBase.

Reimplemented from Grid3DAction.

local getGrid ( )

overridevirtual

Get the pointer of GridBase.

Returns: The pointer of GridBase.

Reimplemented from Grid3DAction.

virtual void update ( float time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

var update ( var time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

local update ( local time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionPageTurn3D.h
