Calls a 'callback' with the node as the first argument. More...

#include <CCActionInstant.h>

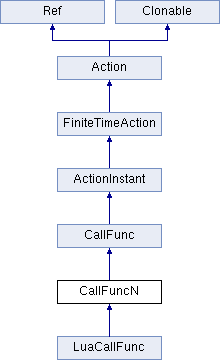

Inheritance diagram for CallFuncN:

Public Member Functions
virtual CallFuncN *	clone () const override
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual void	execute () override
	Executes the callback. More...

local	execute ()
	Executes the callback. More...

bool	initWithTarget (Ref *target, SEL_CallFuncN selector)
	initializes the action with the callback More...

local	initWithTarget ( local target, local selector)
	initializes the action with the callback More...

Public Member Functions inherited from CallFunc
Ref *	getTargetCallback ()
	Get the selector target. More...

local	getTargetCallback ()
	Get the selector target. More...

void	setTargetCallback (Ref *sel)
	Set the selector target. More...

local	setTargetCallback ( local sel)
	Set the selector target. More...

virtual void	update (float time) override
local	update ( local time)
virtual CallFunc *	reverse () const override
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

CC_CONSTRUCTOR_ACCESS	_callFunc (nullptr)
CC_CONSTRUCTOR_ACCESS	_function (nullptr)
virtual	~CallFunc ()
var	~CallFunc ()
local	~CallFunc ()
bool	initWithTarget (Ref *target)
	initializes the action with the callback typedef void (Ref::*SEL_CallFunc)(); More...

var	initWithTarget ( var target)
	initializes the action with the callback typedef void (Ref::*SEL_CallFunc)(); More...

local	initWithTarget ( local target)
	initializes the action with the callback typedef void (Ref::*SEL_CallFunc)(); More...

bool	initWithFunction (const std::function< void()> &func)
	initializes the action with the std::function<void()> More...

Public Member Functions inherited from ActionInstant
virtual bool	isDone () const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
var	step ( var dt)
local	step ( local dt)
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	startWithTarget (Node *target)
	Called before the action start. More...

var	startWithTarget ( var target)
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static CallFuncN *	create (const std::function< void(Node *)> &func)
	Creates the action with the callback of type std::function<void()>. More...

local	create ( local func)
	Creates the action with the callback of type std::function<void()>. More...

static CallFuncN *	create (Ref *target, SEL_CallFuncN selector)
	Creates the action with the callback. More...

local	create ( local target, local selector)
	Creates the action with the callback. More...

Static Public Member Functions inherited from CallFunc
static CallFunc *	create (const std::function< void()> &func)
	Creates the action with the callback of type std::function<void()>. More...

var	create ( var func)
	Creates the action with the callback of type std::function<void()>. More...

static CallFunc *	create (Ref *target, SEL_CallFunc selector)
	Creates the action with the callback. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: CallFuncN():_functionN(nullptr){} virtual ~CallFuncN(){} bool initWithFunction(const std::function<void(Node*)>& func)
local	__pad0__: CallFuncN():_functionN(nullptr){} virtual ~CallFuncN(){} bool initWithFunction(const std::function<void(Node*)>& func)
Public Attributes inherited from CallFunc
CC_CONSTRUCTOR_ACCESS	__pad0__: CallFunc() : _selectorTarget(nullptr)
local	__pad0__: CallFunc() : _selectorTarget(nullptr)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
std::function< void(Node *)>	_functionN
	function that will be called with the "sender" as the 1st argument More...

local	_functionN
	function that will be called with the "sender" as the 1st argument More...

Protected Attributes inherited from CallFunc
Ref *	_selectorTarget
	Target that will be called. More...

union {
SEL_CallFunc _callFunc
var _callFunc
local _callFunc
SEL_CallFuncN _callFuncN
var _callFuncN
local _callFuncN
};

};

};
std::function< void()>	_function
	function that will be called More...

var	_function
	function that will be called More...

local	_function
	function that will be called More...

Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

Calls a 'callback' with the node as the first argument.

N means Node.

Member Function Documentation

virtual CallFuncN* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

static CallFuncN* create ( const std::function< void(Node *)> & func )

static

Creates the action with the callback of type std::function<void()>.

This is the preferred way to create the callback.

Parameters

func	A callback function need to be excuted.

Returns: An autoreleased CallFuncN object.

local create ( local func )

static

Creates the action with the callback of type std::function<void()>.

This is the preferred way to create the callback.

Parameters

func	A callback function need to be excuted.

Returns: An autoreleased CallFuncN object.

static CallFuncN* create	(	Ref *	target,
		SEL_CallFuncN	selector
	)

static

Creates the action with the callback.

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

local create	(	local	target,
		local	selector
	)

static

Creates the action with the callback.

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

virtual void execute ( )

overridevirtual

Executes the callback.

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

local execute ( )

overridevirtual

Executes the callback.

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

bool initWithTarget	(	Ref *	target,
		SEL_CallFuncN	selector
	)

initializes the action with the callback

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

local initWithTarget	(	local	target,
		local	selector
	)

initializes the action with the callback

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

local __pad0__

std::function<void(Node*)>
_functionN

protected

function that will be called with the "sender" as the 1st argument

local _functionN

protected

function that will be called with the "sender" as the 1st argument

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionInstant.h
