Scales a Node object a zoom factor by modifying it's scale attribute. More...

#include <CCActionInterval.h>

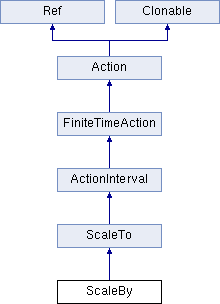

Inheritance diagram for ScaleBy:

Public Member Functions
virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

var	startWithTarget ( var target)
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

virtual ScaleBy *	clone () const override
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual ScaleBy *	reverse (void) const override
	Returns a new action that performs the exactly the reverse action. More...

var	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

Public Member Functions inherited from ScaleTo
virtual void	update (float time) override
bool	initWithDuration (float duration, float sx, float sy)
	initializes the action with and X factor and a Y factor More...

var	initWithDuration ( var duration, var sx, var sy)
	initializes the action with and X factor and a Y factor More...

local	initWithDuration ( local duration, local sx, local sy)
	initializes the action with and X factor and a Y factor More...

bool	initWithDuration (float duration, float sx, float sy, float sz)
	initializes the action with X Y Z factor More...

local	initWithDuration ( local duration, local sx, local sy, local sz)
	initializes the action with X Y Z factor More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static ScaleBy *	create (float duration, float s)
	Creates the action with the same scale factor for X and Y. More...

static ScaleBy *	create (float duration, float sx, float sy)
	Creates the action with and X factor and a Y factor. More...

var	create ( var duration, var sx, var sy)
	Creates the action with and X factor and a Y factor. More...

local	create ( local duration, local sx, local sy)
	Creates the action with and X factor and a Y factor. More...

static ScaleBy *	create (float duration, float sx, float sy, float sz)
	Creates the action with X Y Z factor. More...

var	create ( var duration, var sx, var sy, var sz)
	Creates the action with X Y Z factor. More...

local	create ( local duration, local sx, local sy, local sz)
	Creates the action with X Y Z factor. More...

Static Public Member Functions inherited from ScaleTo
static ScaleTo *	create (float duration, float s)
	Creates the action with the same scale factor for X and Y. More...

var	create ( var duration, var s)
	Creates the action with the same scale factor for X and Y. More...

local	create ( local duration, local s)
	Creates the action with the same scale factor for X and Y. More...

static ScaleTo *	create (float duration, float sx, float sy)
	Creates the action with and X factor and a Y factor. More...

var	create ( var duration, var sx, var sy)
	Creates the action with and X factor and a Y factor. More...

local	create ( local duration, local sx, local sy)
	Creates the action with and X factor and a Y factor. More...

static ScaleTo *	create (float duration, float sx, float sy, float sz)
	Creates the action with X Y Z factor. More...

local	create ( local duration, local sx, local sy, local sz)
	Creates the action with X Y Z factor. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: ScaleBy() {} virtual ~ScaleBy() {}private: CC_DISALLOW_COPY_AND_ASSIGN(ScaleBy)
var	__pad0__: ScaleBy() {} virtual ~ScaleBy() {}private: CC_DISALLOW_COPY_AND_ASSIGN(ScaleBy)
local	__pad0__: ScaleBy() {} virtual ~ScaleBy() {}private: CC_DISALLOW_COPY_AND_ASSIGN(ScaleBy)
Public Attributes inherited from ScaleTo
CC_CONSTRUCTOR_ACCESS	__pad0__: ScaleTo() {} virtual ~ScaleTo() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS float	s
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Protected Attributes inherited from ScaleTo
float	_scaleX
var	_scaleX
local	_scaleX
float	_scaleY
var	_scaleY
local	_scaleY
float	_scaleZ
var	_scaleZ
local	_scaleZ
float	_startScaleX
var	_startScaleX
local	_startScaleX
float	_startScaleY
var	_startScaleY
local	_startScaleY
float	_startScaleZ
var	_startScaleZ
local	_startScaleZ
float	_endScaleX
var	_endScaleX
local	_endScaleX
float	_endScaleY
var	_endScaleY
local	_endScaleY
float	_endScaleZ
var	_endScaleZ
local	_endScaleZ
float	_deltaX
var	_deltaX
local	_deltaX
float	_deltaY
var	_deltaY
local	_deltaY
float	_deltaZ
var	_deltaZ
local	_deltaZ
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Detailed Description

Scales a Node object a zoom factor by modifying it's scale attribute.

Warning: The physics body contained in Node doesn't support this action.

Member Function Documentation

virtual ScaleBy* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ScaleTo.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ScaleTo.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ScaleTo.

static ScaleBy* create	(	float	duration,
		float	s
	)

static

Creates the action with the same scale factor for X and Y.

Parameters

duration	Duration time, in seconds.
s	Scale factor of x and y.

Returns: An autoreleased ScaleBy object.

var create	(	var	duration,
		var	s
	)

static

Creates the action with the same scale factor for X and Y.

Parameters

duration	Duration time, in seconds.
s	Scale factor of x and y.

Returns: An autoreleased ScaleBy object.

local create	(	local	duration,
		local	s
	)

static

Creates the action with the same scale factor for X and Y.

Parameters

duration	Duration time, in seconds.
s	Scale factor of x and y.

Returns: An autoreleased ScaleBy object.

static ScaleBy* create	(	float	duration,
		float	sx,
		float	sy
	)

static

Creates the action with and X factor and a Y factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.

Returns: An autoreleased ScaleBy object.

var create	(	var	duration,
		var	sx,
		var	sy
	)

static

Creates the action with and X factor and a Y factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.

Returns: An autoreleased ScaleBy object.

local create	(	local	duration,
		local	sx,
		local	sy
	)

static

Creates the action with and X factor and a Y factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.

Returns: An autoreleased ScaleBy object.

static ScaleBy* create	(	float	duration,
		float	sx,
		float	sy,
		float	sz
	)

static

Creates the action with X Y Z factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.
sz	Scale factor of z.

Returns: An autoreleased ScaleBy object.

var create	(	var	duration,
		var	sx,
		var	sy,
		var	sz
	)

static

Creates the action with X Y Z factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.
sz	Scale factor of z.

Returns: An autoreleased ScaleBy object.

local create	(	local	duration,
		local	sx,
		local	sy,
		local	sz
	)

static

Creates the action with X Y Z factor.

Parameters

duration	Duration time, in seconds.
sx	Scale factor of x.
sy	Scale factor of y.
sz	Scale factor of z.

Returns: An autoreleased ScaleBy object.

virtual ScaleBy* reverse ( void ) const

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ScaleTo.

var reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ScaleTo.

local reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ScaleTo.

virtual void startWithTarget ( Node * target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ScaleTo.

var startWithTarget ( var target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ScaleTo.

local startWithTarget ( local target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ScaleTo.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionInterval.h

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
