#include <CCActionTiledGrid.h>

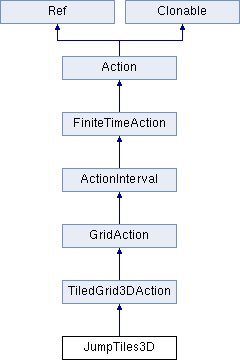

Inheritance diagram for JumpTiles3D:

Public Member Functions
float	getAmplitude () const
	Get the amplitude of the effect. More...

local	getAmplitude ()
	Get the amplitude of the effect. More...

void	setAmplitude (float amplitude)
	Set the amplitude to the effect. More...

var	setAmplitude ( var amplitude)
	Set the amplitude to the effect. More...

local	setAmplitude ( local amplitude)
	Set the amplitude to the effect. More...

float	getAmplitudeRate () const
	Get the amplitude rate of the effect. More...

void	setAmplitudeRate (float amplitudeRate)
	Set the ampliture rate of the effect. More...

var	setAmplitudeRate ( var amplitudeRate)
	Set the ampliture rate of the effect. More...

local	setAmplitudeRate ( local amplitudeRate)
	Set the ampliture rate of the effect. More...

virtual JumpTiles3D *	clone () const override
	Returns a clone of action. More...

var	clone ()
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual void	update (float time) override
	Called once per frame. More...

local	update ( local time)
	Called once per frame. More...

Public Member Functions inherited from TiledGrid3DAction
Quad3	getTile (const Vec2 &position) const
	Get the tile that belongs to a certain position of the grid. More...

Quad3	tile (const Vec2 &position)
Quad3	getOriginalTile (const Vec2 &position) const
	Get the non-transformed tile that belongs to a certain position of the grid. More...

Quad3	originalTile (const Vec2 &position)
void	setTile (const Vec2 &position, const Quad3 &coords)
	Set a new tile to a certain position of the grid. More...

virtual GridBase *	getGrid () override
	returns the grid More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	Returns a new action that performs the exactly the reverse action. More...

var	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static JumpTiles3D *	create (float duration, const Size &gridSize, unsigned int numberOfJumps, float amplitude)
	Create the action with the number of jumps, the sin amplitude, the grid size and the duration. More...

local	create ( local duration, local gridSize, local numberOfJumps, local amplitude)
	Create the action with the number of jumps, the sin amplitude, the grid size and the duration. More...

Static Public Member Functions inherited from TiledGrid3DAction
static TiledGrid3DAction *	create (float duration, const Size &gridSize)
	Create the action with size and duration. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: JumpTiles3D() {} virtual ~JumpTiles3D() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Size &	gridSize
var	gridSize
local	gridSize
CC_CONSTRUCTOR_ACCESS const Size unsigned int	numberOfJumps
var	numberOfJumps
local	numberOfJumps
CC_CONSTRUCTOR_ACCESS const Size unsigned int float	amplitude
Public Attributes inherited from GridAction
CC_CONSTRUCTOR_ACCESS	__pad0__: GridAction() {} virtual ~GridAction() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Size &	gridSize
var	gridSize
local	gridSize
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
unsigned int	_jumps
var	_jumps
local	_jumps
float	_amplitude
var	_amplitude
local	_amplitude
float	_amplitudeRate
var	_amplitudeRate
local	_amplitudeRate
Protected Attributes inherited from GridAction
Size	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from GridAction
void	cacheTargetAsGridNode ()
var	cacheTargetAsGridNode ()
local	cacheTargetAsGridNode ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

JumpTiles3D action.

Move the tiles of a target node across the Z axis.

Member Function Documentation

virtual JumpTiles3D* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from TiledGrid3DAction.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from TiledGrid3DAction.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from TiledGrid3DAction.

static JumpTiles3D* create	(	float	duration,
		const Size &	gridSize,
		unsigned int	numberOfJumps,
		float	amplitude
	)

static

Create the action with the number of jumps, the sin amplitude, the grid size and the duration.

Parameters

duration	Specify the duration of the JumpTiles3D action. It's a value in seconds.
gridSize	Specify the size of the grid.
numberOfJumps	Specify the jump tiles count.
amplitude	Specify the amplitude of the JumpTiles3D action.

Returns: If the creation success, return a pointer of JumpTiles3D action; otherwise, return nil.

var create	(	var	duration,
		var	gridSize,
		var	numberOfJumps,
		var	amplitude
	)

static

Create the action with the number of jumps, the sin amplitude, the grid size and the duration.

Parameters

duration	Specify the duration of the JumpTiles3D action. It's a value in seconds.
gridSize	Specify the size of the grid.
numberOfJumps	Specify the jump tiles count.
amplitude	Specify the amplitude of the JumpTiles3D action.

Returns: If the creation success, return a pointer of JumpTiles3D action; otherwise, return nil.

local create	(	local	duration,
		local	gridSize,
		local	numberOfJumps,
		local	amplitude
	)

static

Create the action with the number of jumps, the sin amplitude, the grid size and the duration.

Parameters

duration	Specify the duration of the JumpTiles3D action. It's a value in seconds.
gridSize	Specify the size of the grid.
numberOfJumps	Specify the jump tiles count.
amplitude	Specify the amplitude of the JumpTiles3D action.

Returns: If the creation success, return a pointer of JumpTiles3D action; otherwise, return nil.

float getAmplitude ( ) const

inline

Get the amplitude of the effect.

Returns: Return the amplitude of the effect.

var getAmplitude ( )

inline

Get the amplitude of the effect.

Returns: Return the amplitude of the effect.

local getAmplitude ( )

inline

Get the amplitude of the effect.

Returns: Return the amplitude of the effect.

float getAmplitudeRate ( void ) const

inline

Get the amplitude rate of the effect.

Returns: Return the amplitude rate of the effect.

var getAmplitudeRate ( )

inline

Get the amplitude rate of the effect.

Returns: Return the amplitude rate of the effect.

local getAmplitudeRate ( )

inline

Get the amplitude rate of the effect.

Returns: Return the amplitude rate of the effect.

void setAmplitude ( float amplitude )

inline

Set the amplitude to the effect.

Parameters

amplitude The value of amplitude will be set.

var setAmplitude ( var amplitude )

inline

Set the amplitude to the effect.

Parameters

amplitude The value of amplitude will be set.

local setAmplitude ( local amplitude )

inline

Set the amplitude to the effect.

Parameters

amplitude The value of amplitude will be set.

void setAmplitudeRate ( float amplitudeRate )

inline

Set the ampliture rate of the effect.

Parameters

amplitudeRate The value of amplitude rate will be set.

var setAmplitudeRate ( var amplitudeRate )

inline

Set the ampliture rate of the effect.

Parameters

amplitudeRate The value of amplitude rate will be set.

local setAmplitudeRate ( local amplitudeRate )

inline

Set the ampliture rate of the effect.

Parameters

amplitudeRate The value of amplitude rate will be set.

virtual void update ( float time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

var update ( var time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

local update ( local time )

overridevirtual

Called once per frame.

time a value between 0 and 1.

For example:

0 Means that the action just started.
0.5 Means that the action is in the middle.
1 Means that the action is over.

Parameters

time	A value between 0 and 1.

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

float _amplitude

protected

var _amplitude

protected

local _amplitude

protected

float _amplitudeRate

protected

var _amplitudeRate

protected

local _amplitudeRate

protected

unsigned int _jumps

protected

var _jumps

protected

local _jumps

protected

CC_CONSTRUCTOR_ACCESS const
Size unsigned int float
amplitude

var amplitude

local amplitude

CC_CONSTRUCTOR_ACCESS const
Size& gridSize

var gridSize

local gridSize

CC_CONSTRUCTOR_ACCESS const
Size unsigned int
numberOfJumps

var numberOfJumps

local numberOfJumps

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionTiledGrid.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
