Moves a Node object x,y pixels by modifying it's position attribute. More...

#include <CCActionInterval.h>

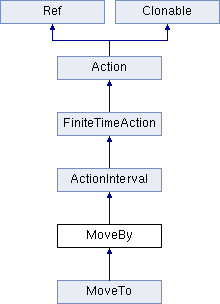

Inheritance diagram for MoveBy:

Public Member Functions
virtual MoveBy *	clone () const override
	Returns a clone of action. More...

var	clone ()
	Returns a clone of action. More...

local	clone ()
	Returns a clone of action. More...

virtual MoveBy *	reverse (void) const override
	Returns a new action that performs the exactly the reverse action. More...

local	reverse ()
	Returns a new action that performs the exactly the reverse action. More...

virtual void	startWithTarget (Node *target) override
	Called before the action start. More...

local	startWithTarget ( local target)
	Called before the action start. More...

virtual void	update (float time) override
bool	initWithDuration (float duration, const Vec3 &deltaPosition)
local	initWithDuration ( local duration, local deltaPosition)
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	How many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	How many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
	Sets the ampliture rate, extension in GridAction. More...

local	setAmplitudeRate ( local amp)
	Sets the ampliture rate, extension in GridAction. More...

float	getAmplitudeRate (void)
	Gets the ampliture rate, extension in GridAction. More...

local	getAmplitudeRate ()
	Gets the ampliture rate, extension in GridAction. More...

virtual bool	isDone (void) const override
	Return true if the action has finished. More...

local	isDone ()
	Return true if the action has finished. More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	Get duration in seconds of the action. More...

var	getDuration ()
	Get duration in seconds of the action. More...

local	getDuration ()
	Get duration in seconds of the action. More...

void	setDuration (float duration)
	Set duration in seconds of the action. More...

var	setDuration ( var duration)
	Set duration in seconds of the action. More...

local	setDuration ( local duration)
	Set duration in seconds of the action. More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	Called after the action has finished. More...

Node *	getTarget () const
	Return certain target. More...

void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
	Return a original Target. More...

var	getOriginalTarget ()
	Return a original Target. More...

local	getOriginalTarget ()
	Return a original Target. More...

void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
	Returns a tag that is used to identify the action easily. More...

var	getTag ()
	Returns a tag that is used to identify the action easily. More...

local	getTag ()
	Returns a tag that is used to identify the action easily. More...

void	setTag (int tag)
	Changes the tag that is used to identify the action easily. More...

var	setTag ( var tag)
	Changes the tag that is used to identify the action easily. More...

local	setTag ( local tag)
	Changes the tag that is used to identify the action easily. More...

virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	Returns a copy of the Ref. More...

Static Public Member Functions
static MoveBy *	create (float duration, const Vec2 &deltaPosition)
	Creates the action. More...

local	create ( local duration, local deltaPosition)
	Creates the action. More...

static MoveBy *	create (float duration, const Vec3 &deltaPosition)
	Creates the action. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: MoveBy():_is3D(false) {} virtual ~MoveBy() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS const Vec2 &	deltaPosition
var	deltaPosition
local	deltaPosition
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
bool	_is3D
local	_is3D
Vec3	_positionDelta
local	_positionDelta
Vec3	_startPosition
var	_startPosition
local	_startPosition
Vec3	_previousPosition
var	_previousPosition
local	_previousPosition
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Detailed Description

Moves a Node object x,y pixels by modifying it's position attribute.

x and y are relative to the position of the object. Several MoveBy actions can be concurrently called, and the resulting movement will be the sum of individual movements.

Since: v2.1beta2-custom

Member Function Documentation

virtual MoveBy* clone ( ) const

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

var clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

local clone ( )

overridevirtual

Returns a clone of action.

Returns: A clone action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

static MoveBy* create	(	float	duration,
		const Vec2 &	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 2d, it's a Vec2 type.

Returns: An autoreleased MoveBy object.

var create	(	var	duration,
		var	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 2d, it's a Vec2 type.

Returns: An autoreleased MoveBy object.

local create	(	local	duration,
		local	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 2d, it's a Vec2 type.

Returns: An autoreleased MoveBy object.

static MoveBy* create	(	float	duration,
		const Vec3 &	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 3d, it's a Vec3 type.

Returns: An autoreleased MoveBy object.

var create	(	var	duration,
		var	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 3d, it's a Vec3 type.

Returns: An autoreleased MoveBy object.

local create	(	local	duration,
		local	deltaPosition
	)

static

Creates the action.

Parameters

duration	Duration time, in seconds.
deltaPosition	The delta distance in 3d, it's a Vec3 type.

Returns: An autoreleased MoveBy object.

bool initWithDuration	(	float	duration,
		const Vec3 &	deltaPosition
	)

var initWithDuration	(	var	duration,
		var	deltaPosition
	)

local initWithDuration	(	local	duration,
		local	deltaPosition
	)

virtual MoveBy* reverse ( void ) const

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

var reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

local reverse ( )

overridevirtual

Returns a new action that performs the exactly the reverse action.

Returns: A new action that performs the exactly the reverse action.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

virtual void startWithTarget ( Node * target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

var startWithTarget ( var target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

local startWithTarget ( local target )

overridevirtual

Called before the action start.

It will also set the target.

Parameters

target A certain target.

Reimplemented from ActionInterval.

Reimplemented in MoveTo.

virtual void update ( float time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

var update ( var time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

local update ( local time )

overridevirtual

Parameters

time	in seconds

Reimplemented from Action.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

bool _is3D

protected

var _is3D

protected

local _is3D

protected

Vec3 _positionDelta

protected

var _positionDelta

protected

local _positionDelta

protected

Vec3 _previousPosition

protected

var _previousPosition

protected

local _previousPosition

protected

Vec3 _startPosition

protected

var _startPosition

protected

local _startPosition

protected

CC_CONSTRUCTOR_ACCESS const
Vec2& deltaPosition

var deltaPosition

local deltaPosition

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/2d/CCActionInterval.h
