UIWidget Class Reference

#include <UIWidget.h>

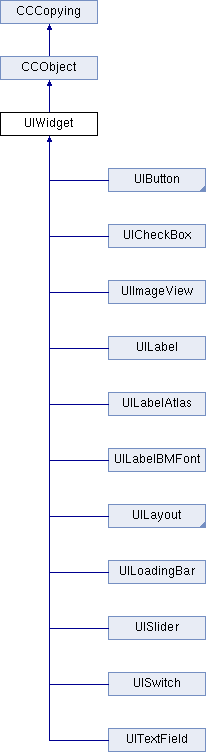

Inheritance diagram for UIWidget:

Public Member Functions
	UIWidget (void)
virtual	~UIWidget ()
	Default destructor. More...
virtual void	setEnabled (bool enabled)
	Sets whether the widget is enabled. More...
bool	isEnabled () const
	Determines if the widget is enabled. More...
void	setVisible (bool visible)
	Sets whether the widget is visible. More...
bool	isVisible () const
	Determines if the widget is visible. More...
void	setBright (bool bright)
	Sets whether the widget is bright. More...
bool	isBright () const
	Determines if the widget is bright. More...
virtual void	setTouchEnabled (bool enabled)
	Sets whether the widget is touch enabled. More...
void	setBrightStyle (BrightStyle style)
	To set the bright style of widget. More...
bool	isTouchEnabled () const
	Determines if the widget is touch enabled. More...
bool	isFocused () const
	Determines if the widget is on focused. More...
void	setFocused (bool fucosed)
	Sets whether the widget is on focused. More...
void	setZOrder (int z)
	Sets the Z order which stands for the drawing order, and reorder this widget in its parent's children array. More...
int	getZOrder ()
	Gets the Z order of this widget. More...
float	getLeftInParent ()
	Gets the left boundary position of this widget. More...
float	getBottomInParent ()
	Gets the bottom boundary position of this widget. More...
var	getBottomInParent ()
	Gets the bottom boundary position of this widget. More...
float	getRightInParent ()
	Gets the right boundary position of this widget. More...
float	getTopInParent ()
	Gets the top boundary position of this widget. More...
virtual bool	addChild (UIWidget *child)
	Adds a child to the container. More...
virtual bool	removeChild (UIWidget *child)
	Removes a child from the container with a cleanup. More...
virtual void	removeFromParent ()
	Removes this widget itself from its parent widget. More...
virtual void	removeAllChildren ()
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
virtual void	reorderChild (UIWidget *child)
	Reorders a child according to a new z value. More...
UIWidget *	getChildByName (const char *name)
	Gets a child from the container with its name. More...
UIWidget *	getChildByTag (int tag)
	Gets a child from the container with its tag. More...
virtual CCArray *	getChildren ()
	Return an array of children. More...
CCNode *	getRenderer ()
	Gets the renderer of widget. More...
void	addRenderer (CCNode *renderer, int zOrder)
	Add a CCNode for rendering. More...
void	removeRenderer (CCNode *renderer, bool cleanup)
	Remove a CCNode from widget. More...
void	setParent (UIWidget *parent)
	Sets the parent widget. More...
UIWidget *	getParent ()
	Returns a pointer to the parent widget. More...
void	addTouchEventListener (CCObject *target, SEL_TouchEvent selector)
	Sets the touch event target/selector of the menu item. More...
var	addTouchEventListener ( var target, var selector)
	Sets the touch event target/selector of the menu item. More...
void	setPosition (const CCPoint &pos)
	Changes the position (x,y) of the widget in OpenGL coordinates. More...
void	setPositionPercent (const CCPoint &percent)
	Changes the position (x,y) of the widget in OpenGL coordinates. More...
var	setPositionPercent ( var percent)
	Changes the position (x,y) of the widget in OpenGL coordinates. More...
const CCPoint &	getPosition ()
	Gets the position (x,y) of the widget in OpenGL coordinates. More...
const CCPoint &	getPositionPercent ()
	Gets the percent (x,y) of the widget in OpenGL coordinates. More...
void	setPositionType (PositionType type)
	Changes the position type of the widget. More...
PositionType	getPositionType () const
	Gets the position type of the widget. More...
virtual void	setAnchorPoint (const CCPoint &pt)
	Sets the anchor point in percent. More...
const CCPoint &	getAnchorPoint ()
	Returns the anchor point in percent. More...
virtual void	setScale (float fScale)
	Changes both X and Y scale factor of the widget. More...
float	getScale ()
	Gets the scale factor of the widget, when X and Y have the same scale factor. More...
virtual void	setScaleX (float fScaleX)
	Changes the scale factor on X axis of this widget. More...
float	getScaleX ()
	Returns the scale factor on X axis of this widget. More...
virtual void	setScaleY (float fScaleY)
	Changes the scale factor on Y axis of this widget. More...
float	getScaleY ()
	Returns the scale factor on Y axis of this widget. More...
void	setRotation (float rotation)
	Sets the rotation (angle) of the widget in degrees. More...
float	getRotation ()
	Returns the rotation of the widget in degrees. More...
void	setRotationX (float rotationX)
	Sets the X rotation (angle) of the widget in degrees which performs a horizontal rotational skew. More...
float	getRotationX ()
	Gets the X rotation (angle) of the widget in degrees which performs a horizontal rotation skew. More...
void	setRotationY (float rotationY)
	Sets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew. More...
float	getRotationY ()
	Gets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew. More...
virtual void	setFlipX (bool flipX)
	Sets whether the widget should be flipped horizontally or not. More...
virtual bool	isFlipX ()
	Returns the flag which indicates whether the widget is flipped horizontally or not. More...
virtual void	setFlipY (bool flipY)
	Sets whether the widget should be flipped vertically or not. More...
virtual bool	isFlipY ()
	Return the flag which indicates whether the widget is flipped vertically or not. More...
virtual void	setColor (const ccColor3B &color)
	Sets color to widget. More...
virtual const ccColor3B &	getColor ()
	Gets color of widget. More...
virtual void	setOpacity (int opacity)
	Sets opacity to widget. More...
virtual int	getOpacity ()
	Gets opacity of widget. More...
virtual bool	isCascadeOpacityEnabled ()
virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
virtual bool	isCascadeColorEnabled ()
virtual void	setCascadeColorEnabled (bool cascadeColorEnabled)
void	setBlendFunc (ccBlendFunc blendFunc)
virtual void	setActionManager (CCActionManager *actionManager)
virtual CCActionManager *	getActionManager ()
CCAction *	runAction (CCAction *action)
void	stopAllActions (void)
void	stopAction (CCAction *action)
void	stopActionByTag (int tag)
CCAction *	getActionByTag (int tag)
void	didNotSelectSelf ()
	A call back function when widget lost of focus. More...
var	didNotSelectSelf ()
	A call back function when widget lost of focus. More...
bool	clippingParentAreaContainPoint (const CCPoint &pt)
virtual void	checkChildInfo (int handleState, UIWidget *sender, const CCPoint &touchPoint)
const CCPoint &	getTouchStartPos ()
const CCPoint &	getTouchMovePos ()
const CCPoint &	getTouchEndPos ()
void	setTag (int tag)
	Changes the tag that is used to identify the widget easily. More...
int	getTag () const
	Returns a tag that is used to identify the widget easily. More...
void	setName (const char *name)
	Changes the name that is used to identify the widget easily. More...
const char *	getName () const
	Returns a name that is used to identify the widget easily. More...
var	getName ()
	Returns a name that is used to identify the widget easily. More...
WidgetType	getWidgetType () const
	Returns a type that is widget's type. More...
virtual void	setSize (const CCSize &size)
	Changes the size that is widget's size. More...
virtual void	setSizePercent (const CCPoint &percent)
	Changes the percent that is widget's percent size. More...
void	setSizeType (SizeType type)
	Changes the size type of widget. More...
SizeType	getSizeType () const
	Gets the size type of widget. More...
const CCSize &	getSize () const
	Returns size of widget. More...
const CCPoint &	getSizePercent () const
	Returns size percent of widget. More...
virtual bool	hitTest (const CCPoint &pt)
	Checks a point if is in widget's space. More...
virtual bool	onTouchBegan (const CCPoint &touchPoint)
	A call back function called when widget is selected, and on touch began. More...
virtual void	onTouchMoved (const CCPoint &touchPoint)
	A call back function called when widget is selected, and on touch moved. More...
virtual void	onTouchEnded (const CCPoint &touchPoint)
	A call back function called when widget is selected, and on touch ended. More...
virtual void	onTouchCancelled (const CCPoint &touchPoint)
	A call back function called when widget is selected, and on touch canceled. More...
virtual void	onTouchLongClicked (const CCPoint &touchPoint)
	A call back function called when widget is selected, and on touch long clicked. More...
var	onTouchLongClicked ( var touchPoint)
	A call back function called when widget is selected, and on touch long clicked. More...
void	setLayoutParameter (UILayoutParameter *parameter)
	Sets a LayoutParameter to widget. More...
UILayoutParameter *	getLayoutParameter (LayoutParameterType type)
	Gets LayoutParameter of widget. More...
virtual void	ignoreContentAdaptWithSize (bool ignore)
	Ignore the widget size. More...
bool	isIgnoreContentAdaptWithSize () const
	Gets the widget if is ignore it's size. More...
CCPoint	getWorldPosition ()
	Gets world position of widget. More...
CCPoint	convertToWorldSpace (const CCPoint &pt)
	Converts a Point to world space coordinates. More...
virtual CCNode *	getVirtualRenderer ()
	Gets the Virtual Renderer of widget. More...
void	setUpdateEnabled (bool enable)
	Schedules the "update" method. More...
bool	isUpdateEnabled ()
	is the "update" method scheduled. More...
virtual const CCSize &	getContentSize () const
	Gets the content size of widget. More...
virtual const char *	getDescription () const
	Returns the "class name" of widget. More...
UIWidget *	clone ()
virtual void	onEnter ()
virtual void	onExit ()
virtual CCObject *	getUserObject ()
	Returns a user assigned CCObject. More...
virtual void	setUserObject (CCObject *pUserObject)
	Returns a user assigned CCObject. More...
void	setTouchEnable (bool enabled, bool containChildren=false)
	These methods will be removed. More...
void	disable (bool containChildren=false)
void	active (bool containChildren=false)
bool	isActive ()
var	isActive ()
void	setBright (bool bright, bool containChild)
CCRect	getRect ()
CCNode *	getValidNode ()
void	setWidgetZOrder (int z)
int	getWidgetZOrder ()
float	getRelativeLeftPos ()
var	getRelativeLeftPos ()
float	getRelativeBottomPos ()
float	getRelativeRightPos ()
float	getRelativeTopPos ()
CCNode *	getContainerNode ()
void	setWidgetParent (UIWidget *parent)
UIWidget *	getWidgetParent ()
void	setWidgetTag (int tag)
int	getWidgetTag ()
void	addCCNode (CCNode *node)
void	addPushDownEvent (CCObject *target, SEL_PushEvent selector)
var	addPushDownEvent ( var target, var selector)
void	addMoveEvent (CCObject *target, SEL_MoveEvent selector)
void	addReleaseEvent (CCObject *target, SEL_ReleaseEvent selector)
void	addCancelEvent (CCObject *target, SEL_CancelEvent selector)
bool	removeChild (UIWidget *child, bool cleanup)
void	removeFromParentAndCleanup (bool cleanup)
void	removeAllChildrenAndCleanUp (bool cleanup)
void	setActionTag (int tag)
int	getActionTag ()
void	updateSizeAndPosition ()
var	updateSizeAndPosition ()
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)
virtual void	update (float dt)
Public Member Functions inherited from CCCopying
virtual CCObject *	copyWithZone (CCZone *pZone)

Static Public Member Functions
static UIWidget *	create ()
	Allocates and initializes a widget. More...

Protected Member Functions
virtual void	onSizeChanged ()
virtual bool	init ()
virtual void	initRenderer ()
virtual void	onPressStateChangedToNormal ()
virtual void	onPressStateChangedToPressed ()
virtual void	onPressStateChangedToDisabled ()
void	pushDownEvent ()
void	moveEvent ()
void	releaseUpEvent ()
void	cancelUpEvent ()
void	longClickEvent ()
void	updateAnchorPoint ()
var	updateAnchorPoint ()
void	copyProperties (UIWidget *model)
virtual UIWidget *	createCloneInstance ()
virtual void	copySpecialProperties (UIWidget *model)
virtual void	copyClonedWidgetChildren (UIWidget *model)

Protected Attributes
bool	m_bEnabled
	Highest control of widget. More...
bool	m_bVisible
	is this widget visible More...
bool	m_bBright
	is this widget bright More...
bool	m_bTouchEnabled
	is this widget touch endabled More...
var	m_bTouchEnabled
	is this widget touch endabled More...
bool	m_bTouchPassedEnabled
	is the touch event should be passed More...
bool	m_bFocus
	is the widget on focus More...
int	m_nWidgetZOrder
	z-order value that affects the draw order and touch order More...
CCPoint	m_anchorPoint
	anchor point normalized More...
UIWidget *	m_pWidgetParent
	parent of widget More...
var	m_pWidgetParent
	parent of widget More...
BrightStyle	m_eBrightStyle
	bright style More...
bool	m_bUpdateEnabled
	is "update" method scheduled More...
var	m_bUpdateEnabled
	is "update" method scheduled More...
CCNode *	m_pRenderer
	base renderer More...
CCPoint	m_touchStartPos
	touch began point More...
var	m_touchStartPos
	touch began point More...
CCPoint	m_touchMovePos
	touch moved point More...
CCPoint	m_touchEndPos
	touch ended point More...
var	m_touchEndPos
	touch ended point More...
CCObject *	m_pTouchEventListener
SEL_TouchEvent	m_pfnTouchEventSelector
var	m_pfnTouchEventSelector
int	m_nWidgetTag
std::string	m_strName
var	m_strName
WidgetType	m_WidgetType
var	m_WidgetType
int	m_nActionTag
var	m_nActionTag
CCSize	m_size
var	m_size
CCSize	m_customSize
var	m_customSize
CCDictionary *	m_pLayoutParameterDictionary
var	m_pLayoutParameterDictionary
bool	m_bIgnoreSize
var	m_bIgnoreSize
CCArray *	m_children
var	m_children
bool	m_bAffectByClipping
var	m_bAffectByClipping
CCScheduler *	m_pScheduler
SizeType	m_eSizeType
var	m_eSizeType
CCPoint	m_sizePercent
var	m_sizePercent
PositionType	m_ePositionType
var	m_ePositionType
CCPoint	m_positionPercent
var	m_positionPercent
bool	m_bIsRunning
CCObject *	m_pUserObject
var	m_pUserObject
CCObject *	m_pPushListener
var	m_pPushListener
SEL_PushEvent	m_pfnPushSelector
var	m_pfnPushSelector
CCObject *	m_pMoveListener
SEL_MoveEvent	m_pfnMoveSelector
var	m_pfnMoveSelector
CCObject *	m_pReleaseListener
SEL_ReleaseEvent	m_pfnReleaseSelector
var	m_pfnReleaseSelector
CCObject *	m_pCancelListener
var	m_pCancelListener
SEL_ReleaseEvent	m_pfnCancelSelector
var	m_pfnCancelSelector
Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Constructor & Destructor Documentation

UIWidget

(

void

)

var ctor

(

)

virtual ~UIWidget ( )

virtual

Default destructor.

Member Function Documentation

void active ( bool  containChildren = false)

inline

var active ( var  containChildren = false)

inline

void addCancelEvent ( CCObject *  target, SEL_CancelEvent  selector  )

inline

var addCancelEvent ( var  target, var  selector  )

inline

void addCCNode ( CCNode *  node)

inline

var addCCNode ( var  node)

inline

virtual bool addChild ( UIWidget *  child)

virtual

Adds a child to the container.

Parameters

child

A child widget

Reimplemented in UIScrollView, UILayout, UIPageView, UIListViewEx, and UIListView.

var addChild ( var  child)

virtual

Adds a child to the container.

Parameters

child

A child widget

Reimplemented in UIScrollView, UILayout, UIPageView, UIListViewEx, and UIListView.

void addMoveEvent ( CCObject *  target, SEL_MoveEvent  selector  )

inline

var addMoveEvent ( var  target, var  selector  )

inline

void addPushDownEvent ( CCObject *  target, SEL_PushEvent  selector  )

inline

var addPushDownEvent ( var  target, var  selector  )

inline

void addReleaseEvent ( CCObject *  target, SEL_ReleaseEvent  selector  )

inline

var addReleaseEvent ( var  target, var  selector  )

inline

void addRenderer	(	CCNode *	renderer,
		int	zOrder
	)

Add a CCNode for rendering.

renderer is a CCNode, it's for drawing

Parameters

renderer	A render node
zOrder	Z order for drawing priority. Please refer to CCNode::setZOrder(int)

var addRenderer	(	var	renderer,
		var	zOrder
	)

Add a CCNode for rendering.

renderer is a CCNode, it's for drawing

Parameters

renderer	A render node
zOrder	Z order for drawing priority. Please refer to CCNode::setZOrder(int)

void addTouchEventListener	(	CCObject *	target,
		SEL_TouchEvent	selector
	)

Sets the touch event target/selector of the menu item.

var addTouchEventListener	(	var	target,
		var	selector
	)

Sets the touch event target/selector of the menu item.

void cancelUpEvent ( )

protected

var cancelUpEvent ( )

protected

virtual void checkChildInfo ( int  handleState, UIWidget *  sender, const CCPoint &  touchPoint  )

virtual

Reimplemented in UIScrollView, UIPageView, and UIListView.

var checkChildInfo ( var  handleState, var  sender, var  touchPoint  )

virtual

Reimplemented in UIScrollView, UIPageView, and UIListView.

bool clippingParentAreaContainPoint

(

const CCPoint &

pt)

var clippingParentAreaContainPoint

(

var

pt)

UIWidget* clone

(

)

var clone

(

)

CCPoint convertToWorldSpace

(

const CCPoint &

pt)

Converts a Point to world space coordinates.

The result is in Points.

var convertToWorldSpace

(

var

pt)

Converts a Point to world space coordinates.

The result is in Points.

virtual void copyClonedWidgetChildren ( UIWidget *  model)

protectedvirtual

Reimplemented in UIScrollView, UILayout, UIListView, UIPageView, and UIListViewEx.

var copyClonedWidgetChildren ( var  model)

protectedvirtual

Reimplemented in UIScrollView, UILayout, UIListView, UIPageView, and UIListViewEx.

void copyProperties ( UIWidget *  model)

protected

var copyProperties ( var  model)

protected

virtual void copySpecialProperties ( UIWidget *  model)

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIListView, UICheckBox, UIPageView, UIButton, UIListViewEx, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

var copySpecialProperties ( var  model)

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIListView, UICheckBox, UIPageView, UIButton, UIListViewEx, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

static UIWidget* create ( )

static

Allocates and initializes a widget.

var create ( )

static

Allocates and initializes a widget.

virtual UIWidget* createCloneInstance ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIListView, UICheckBox, UIPageView, UIButton, UIListViewEx, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

var createCloneInstance ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIListView, UICheckBox, UIPageView, UIButton, UIListViewEx, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

void didNotSelectSelf

(

)

A call back function when widget lost of focus.

var didNotSelectSelf

(

)

A call back function when widget lost of focus.

void disable ( bool  containChildren = false)

inline

var disable ( var  containChildren = false)

inline

CCAction* getActionByTag

(

int

tag)

var getActionByTag

(

var

tag)

virtual CCActionManager* getActionManager ( )

virtual

var getActionManager ( )

virtual

int getActionTag

(

)

var getActionTag

(

)

const CCPoint& getAnchorPoint

(

)

Returns the anchor point in percent.

See Also

setAnchorPoint(const CCPoint&)

Returns

The anchor point of widget.

var getAnchorPoint

(

)

Returns the anchor point in percent.

See Also

setAnchorPoint(const CCPoint&)

Returns

The anchor point of widget.

float getBottomInParent

(

)

Gets the bottom boundary position of this widget.

Returns

The bottom boundary position of this widget.

var getBottomInParent

(

)

Gets the bottom boundary position of this widget.

Returns

The bottom boundary position of this widget.

UIWidget* getChildByName

(

const char *

name)

Gets a child from the container with its name.

Parameters

name	An key to find the child widget.

Returns

a UIWidget object whose name equals to the input parameter

var getChildByName

(

var

name)

Gets a child from the container with its name.

Parameters

name	An key to find the child widget.

Returns

a UIWidget object whose name equals to the input parameter

UIWidget* getChildByTag

(

int

tag)

Gets a child from the container with its tag.

Parameters

tag	An identifier to find the child widget.

Returns

a UIWidget object whose tag equals to the input parameter

var getChildByTag

(

var

tag)

Gets a child from the container with its tag.

Parameters

tag	An identifier to find the child widget.

Returns

a UIWidget object whose tag equals to the input parameter

virtual CCArray* getChildren ( )

virtual

Return an array of children.

Composing a "tree" structure is a very important feature of UIWidget

Returns

An array of children

Reimplemented in UIScrollView, and UIListViewEx.

var getChildren ( )

virtual

Return an array of children.

Composing a "tree" structure is a very important feature of UIWidget

Returns

An array of children

Reimplemented in UIScrollView, and UIListViewEx.

virtual const ccColor3B& getColor ( )

virtual

Gets color of widget.

Returns

color

var getColor ( )

virtual

Gets color of widget.

Returns

color

CCNode* getContainerNode ( )

inline

var getContainerNode ( )

inline

virtual const CCSize& getContentSize ( ) const

virtual

Gets the content size of widget.

Content size is widget's texture size.

Reimplemented in UISlider, UILayout, UITextField, UICheckBox, UIButton, UIImageView, UILabel, UILoadingBar, UILabelAtlas, and UILabelBMFont.

var getContentSize ( )

virtual

Gets the content size of widget.

Content size is widget's texture size.

Reimplemented in UISlider, UILayout, UITextField, UICheckBox, UIButton, UIImageView, UILabel, UILoadingBar, UILabelAtlas, and UILabelBMFont.

virtual const char* getDescription ( ) const

virtual

Returns the "class name" of widget.

Reimplemented in UIScrollView, UISlider, UIPageView, UILayout, UICheckBox, UIListViewEx, UIListView, UIButton, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, UILabelBMFont, and UIRootWidget.

var getDescription ( )

virtual

Returns the "class name" of widget.

Reimplemented in UIScrollView, UISlider, UIPageView, UILayout, UICheckBox, UIListViewEx, UIListView, UIButton, UITextField, UILabel, UILoadingBar, UIImageView, UILabelAtlas, UILabelBMFont, and UIRootWidget.

UILayoutParameter* getLayoutParameter

(

LayoutParameterType

type)

Gets LayoutParameter of widget.

See Also

LayoutParameter

Parameters

type	Relative or Linear

Returns

LayoutParameter

var getLayoutParameter

(

var

type)

Gets LayoutParameter of widget.

See Also

LayoutParameter

Parameters

type	Relative or Linear

Returns

LayoutParameter

float getLeftInParent

(

)

Gets the left boundary position of this widget.

Returns

The left boundary position of this widget.

var getLeftInParent

(

)

Gets the left boundary position of this widget.

Returns

The left boundary position of this widget.

const char* getName

(

)

const

Returns a name that is used to identify the widget easily.

You can set tags to widget then identify them easily.

Returns

A const char* that identifies the widget.

var getName

(

)

Returns a name that is used to identify the widget easily.

You can set tags to widget then identify them easily.

Returns

A const char* that identifies the widget.

virtual int getOpacity ( )

virtual

Gets opacity of widget.

Returns

opacity

var getOpacity ( )

virtual

Gets opacity of widget.

Returns

opacity

UIWidget* getParent

(

)

Returns a pointer to the parent widget.

See Also

setParent(UIWidget*)

Returns

A pointer to the parnet widget

var getParent

(

)

Returns a pointer to the parent widget.

See Also

setParent(UIWidget*)

Returns

A pointer to the parnet widget

const CCPoint& getPosition

(

)

Gets the position (x,y) of the widget in OpenGL coordinates.

See Also

setPosition(const CCPoint&)

Returns

The position (x,y) of the widget in OpenGL coordinates

var getPosition

(

)

Gets the position (x,y) of the widget in OpenGL coordinates.

See Also

setPosition(const CCPoint&)

Returns

The position (x,y) of the widget in OpenGL coordinates

const CCPoint& getPositionPercent

(

)

Gets the percent (x,y) of the widget in OpenGL coordinates.

See Also

setPosition(const CCPoint&)

Returns

The percent (x,y) of the widget in OpenGL coordinates

var getPositionPercent

(

)

Gets the percent (x,y) of the widget in OpenGL coordinates.

See Also

setPosition(const CCPoint&)

Returns

The percent (x,y) of the widget in OpenGL coordinates

PositionType getPositionType

(

)

const

Gets the position type of the widget.

See Also

PositionType

Returns

type the position type of widget

var getPositionType

(

)

Gets the position type of the widget.

See Also

PositionType

Returns

type the position type of widget

CCRect getRect ( )

inline

var getRect ( )

inline

float getRelativeBottomPos ( )

inline

var getRelativeBottomPos ( )

inline

float getRelativeLeftPos ( )

inline

var getRelativeLeftPos ( )

inline

float getRelativeRightPos ( )

inline

var getRelativeRightPos ( )

inline

float getRelativeTopPos ( )

inline

var getRelativeTopPos ( )

inline

CCNode* getRenderer

(

)

Gets the renderer of widget.

renderer is a CCNode, it's for drawing

Returns

a CCNode object

var getRenderer

(

)

Gets the renderer of widget.

renderer is a CCNode, it's for drawing

Returns

a CCNode object

float getRightInParent

(

)

Gets the right boundary position of this widget.

Returns

The right boundary position of this widget.

var getRightInParent

(

)

Gets the right boundary position of this widget.

Returns

The right boundary position of this widget.

float getRotation

(

)

Returns the rotation of the widget in degrees.

See Also

setRotation(float)

Returns

The rotation of the widget in degrees.

var getRotation

(

)

Returns the rotation of the widget in degrees.

See Also

setRotation(float)

Returns

The rotation of the widget in degrees.

float getRotationX

(

)

Gets the X rotation (angle) of the widget in degrees which performs a horizontal rotation skew.

See Also

setRotationX(float)

Returns

The X rotation in degrees.

var getRotationX

(

)

Gets the X rotation (angle) of the widget in degrees which performs a horizontal rotation skew.

See Also

setRotationX(float)

Returns

The X rotation in degrees.

float getRotationY

(

)

Gets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew.

See Also

setRotationY(float)

Returns

The Y rotation in degrees.

var getRotationY

(

)

Gets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew.

See Also

setRotationY(float)

Returns

The Y rotation in degrees.

float getScale

(

)

Gets the scale factor of the widget, when X and Y have the same scale factor.

Warning

Assert when m_fScaleX != m_fScaleY.

See Also

setScale(float)

Returns

The scale factor of the widget.

var getScale

(

)

Gets the scale factor of the widget, when X and Y have the same scale factor.

Warning

Assert when m_fScaleX != m_fScaleY.

See Also

setScale(float)

Returns

The scale factor of the widget.

float getScaleX

(

)

Returns the scale factor on X axis of this widget.

See Also

setScaleX(float)

Returns

The scale factor on X axis.

var getScaleX

(

)

Returns the scale factor on X axis of this widget.

See Also

setScaleX(float)

Returns

The scale factor on X axis.

float getScaleY

(

)

Returns the scale factor on Y axis of this widget.

See Also

setScaleY(float)

Returns

The scale factor on Y axis.

var getScaleY

(

)

Returns the scale factor on Y axis of this widget.

See Also

setScaleY(float)

Returns

The scale factor on Y axis.

const CCSize& getSize

(

)

const

Returns size of widget.

Returns

size

var getSize

(

)

Returns size of widget.

Returns

size

const CCPoint& getSizePercent

(

)

const

Returns size percent of widget.

Returns

size percent

var getSizePercent

(

)

Returns size percent of widget.

Returns

size percent

SizeType getSizeType

(

)

const

Gets the size type of widget.

See Also

SizeType

Parameters

type	that is widget's size type

var getSizeType

(

)

Gets the size type of widget.

See Also

SizeType

Parameters

type	that is widget's size type

int getTag

(

)

const

Returns a tag that is used to identify the widget easily.

You can set tags to widget then identify them easily.

Returns

A interger that identifies the widget.

var getTag

(

)

Returns a tag that is used to identify the widget easily.

You can set tags to widget then identify them easily.

Returns

A interger that identifies the widget.

float getTopInParent

(

)

Gets the top boundary position of this widget.

Returns

The top boundary position of this widget.

var getTopInParent

(

)

Gets the top boundary position of this widget.

Returns

The top boundary position of this widget.

const CCPoint& getTouchEndPos

(

)

var getTouchEndPos

(

)

const CCPoint& getTouchMovePos

(

)

var getTouchMovePos

(

)

const CCPoint& getTouchStartPos

(

)

var getTouchStartPos

(

)

virtual CCObject* getUserObject ( )

virtual

Returns a user assigned CCObject.

Similar to userData, but instead of holding a void* it holds an object

Returns

A user assigned CCObject

CCNode* getValidNode ( )

inline

var getValidNode ( )

inline

virtual CCNode* getVirtualRenderer ( )

virtual

Gets the Virtual Renderer of widget.

For example, a button's Virtual Renderer is it's texture renderer.

Returns

CCNode pointer.

Reimplemented in UISlider, UICheckBox, UITextField, UIButton, UIImageView, UILabel, UILoadingBar, UILabelAtlas, and UILabelBMFont.

var getVirtualRenderer ( )

virtual

Gets the Virtual Renderer of widget.

For example, a button's Virtual Renderer is it's texture renderer.

Returns

CCNode pointer.

Reimplemented in UISlider, UICheckBox, UITextField, UIButton, UIImageView, UILabel, UILoadingBar, UILabelAtlas, and UILabelBMFont.

UIWidget* getWidgetParent ( )

inline

var getWidgetParent ( )

inline

int getWidgetTag ( )

inline

var getWidgetTag ( )

inline

WidgetType getWidgetType

(

)

const

Returns a type that is widget's type.

See Also

WidgetType

Returns

A WidgetType

var getWidgetType

(

)

Returns a type that is widget's type.

See Also

WidgetType

Returns

A WidgetType

int getWidgetZOrder ( )

inline

var getWidgetZOrder ( )

inline

CCPoint getWorldPosition

(

)

Gets world position of widget.

Returns

world position of widget.

var getWorldPosition

(

)

Gets world position of widget.

Returns

world position of widget.

int getZOrder

(

)

Gets the Z order of this widget.

See Also

setZOrder(int)

Returns

The Z order.

var getZOrder

(

)

Gets the Z order of this widget.

See Also

setZOrder(int)

Returns

The Z order.

virtual bool hitTest ( const CCPoint &  pt)

virtual

Checks a point if is in widget's space.

Parameters

point

Returns

true if the point is in widget's space, flase otherwise.

Reimplemented in UILayout.

var hitTest ( var  pt)

virtual

Checks a point if is in widget's space.

Parameters

point

Returns

true if the point is in widget's space, flase otherwise.

Reimplemented in UILayout.

virtual void ignoreContentAdaptWithSize ( bool  ignore)

virtual

Ignore the widget size.

Parameters

ignore,true

that widget will ignore it's size, use texture size, false otherwise. Default value is true.

Reimplemented in UISlider, UIButton, UILoadingBar, and UIImageView.

var ignoreContentAdaptWithSize ( var  ignore)

virtual

Ignore the widget size.

Parameters

ignore,true

that widget will ignore it's size, use texture size, false otherwise. Default value is true.

Reimplemented in UISlider, UIButton, UILoadingBar, and UIImageView.

virtual bool init ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UIButton, UICheckBox, UIPageView, UIListViewEx, UIListView, UILabel, UITextField, UIDragPanel, UIRootWidget, and UIZoomButton.

var init ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UIButton, UICheckBox, UIPageView, UIListViewEx, UIListView, UILabel, UITextField, UIDragPanel, UIRootWidget, and UIZoomButton.

virtual void initRenderer ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIButton, UICheckBox, UILabel, UILoadingBar, UIImageView, UITextField, UILabelAtlas, and UILabelBMFont.

var initRenderer ( )

protectedvirtual

Reimplemented in UIScrollView, UILayout, UISlider, UIButton, UICheckBox, UILabel, UILoadingBar, UIImageView, UITextField, UILabelAtlas, and UILabelBMFont.

bool isActive ( )

inline

var isActive ( )

inline

bool isBright

(

)

const

Determines if the widget is bright.

Returns

true if the widget is bright, false if the widget is dark.

var isBright

(

)

Determines if the widget is bright.

Returns

true if the widget is bright, false if the widget is dark.

virtual bool isCascadeColorEnabled ( )

virtual

var isCascadeColorEnabled ( )

virtual

virtual bool isCascadeOpacityEnabled ( )

virtual

var isCascadeOpacityEnabled ( )

virtual

bool isEnabled

(

)

const

Determines if the widget is enabled.

Returns

true if the widget is enabled, false if the widget is disabled.

var isEnabled

(

)

Determines if the widget is enabled.

Returns

true if the widget is enabled, false if the widget is disabled.

virtual bool isFlipX ( )

inlinevirtual

Returns the flag which indicates whether the widget is flipped horizontally or not.

It only flips the texture of the widget, and not the texture of the widget's children. Also, flipping the texture doesn't alter the anchorPoint. If you want to flip the anchorPoint too, and/or to flip the children too use: widget->setScaleX(sprite->getScaleX() * -1);

Returns

true if the widget is flipped horizaontally, false otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

var isFlipX ( )

inlinevirtual

Returns the flag which indicates whether the widget is flipped horizontally or not.

It only flips the texture of the widget, and not the texture of the widget's children. Also, flipping the texture doesn't alter the anchorPoint. If you want to flip the anchorPoint too, and/or to flip the children too use: widget->setScaleX(sprite->getScaleX() * -1);

Returns

true if the widget is flipped horizaontally, false otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

virtual bool isFlipY ( )

inlinevirtual

Return the flag which indicates whether the widget is flipped vertically or not.

It only flips the texture of the widget, and not the texture of the widget's children. Also, flipping the texture doesn't alter the anchorPoint. If you want to flip the anchorPoint too, and/or to flip the children too use: widget->setScaleY(widget->getScaleY() * -1);

Returns

true if the widget is flipped vertically, flase otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

var isFlipY ( )

inlinevirtual

Return the flag which indicates whether the widget is flipped vertically or not.

It only flips the texture of the widget, and not the texture of the widget's children. Also, flipping the texture doesn't alter the anchorPoint. If you want to flip the anchorPoint too, and/or to flip the children too use: widget->setScaleY(widget->getScaleY() * -1);

Returns

true if the widget is flipped vertically, flase otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

bool isFocused

(

)

const

Determines if the widget is on focused.

Returns

true if the widget is on focused, false if the widget is not on focused.

var isFocused

(

)

Determines if the widget is on focused.

Returns

true if the widget is on focused, false if the widget is not on focused.

bool isIgnoreContentAdaptWithSize

(

)

const

Gets the widget if is ignore it's size.

Parameters

ignore,true

that widget will ignore it's size, use texture size, false otherwise. Default value is true.

var isIgnoreContentAdaptWithSize

(

)

Gets the widget if is ignore it's size.

Parameters

ignore,true

that widget will ignore it's size, use texture size, false otherwise. Default value is true.

bool isTouchEnabled

(

)

const

Determines if the widget is touch enabled.

Returns

true if the widget is touch enabled, false if the widget is touch disabled.

var isTouchEnabled

(

)

Determines if the widget is touch enabled.

Returns

true if the widget is touch enabled, false if the widget is touch disabled.

bool isUpdateEnabled

(

)

is the "update" method scheduled.

var isUpdateEnabled

(

)

is the "update" method scheduled.

bool isVisible

(

)

const

Determines if the widget is visible.

Returns

true if the widget is visible, false if the widget is hidden.

var isVisible

(

)

Determines if the widget is visible.

Returns

true if the widget is visible, false if the widget is hidden.

void longClickEvent ( )

protected

var longClickEvent ( )

protected

void moveEvent ( )

protected

var moveEvent ( )

protected

virtual void onEnter ( )

virtual

var onEnter ( )

virtual

virtual void onExit ( )

virtual

var onExit ( )

virtual

virtual void onPressStateChangedToDisabled ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

var onPressStateChangedToDisabled ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

virtual void onPressStateChangedToNormal ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

var onPressStateChangedToNormal ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

virtual void onPressStateChangedToPressed ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

var onPressStateChangedToPressed ( )

protectedvirtual

Reimplemented in UISlider, UIButton, UICheckBox, and UILabel.

virtual void onSizeChanged ( )

protectedvirtual

Reimplemented in UIScrollView, UISlider, UILayout, UIPageView, UICheckBox, UIButton, UIListViewEx, UITextField, UIListView, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

var onSizeChanged ( )

protectedvirtual

Reimplemented in UIScrollView, UISlider, UILayout, UIPageView, UICheckBox, UIButton, UIListViewEx, UITextField, UIListView, UILabel, UILoadingBar, UIImageView, UILabelAtlas, and UILabelBMFont.

virtual bool onTouchBegan ( const CCPoint &  touchPoint)

virtual

A call back function called when widget is selected, and on touch began.

Parameters

touch

point

Returns

true if the event should be pass to parent, flase otherwise.

Reimplemented in UIScrollView, UISlider, UIPageView, UITextField, UIListView, and UIImageView.

var onTouchBegan ( var  touchPoint)

virtual

A call back function called when widget is selected, and on touch began.

Parameters

touch

point

Returns

true if the event should be pass to parent, flase otherwise.

Reimplemented in UIScrollView, UISlider, UIPageView, UITextField, UIListView, and UIImageView.

virtual void onTouchCancelled ( const CCPoint &  touchPoint)

virtual

A call back function called when widget is selected, and on touch canceled.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UIPageView, and UIListView.

var onTouchCancelled ( var  touchPoint)

virtual

A call back function called when widget is selected, and on touch canceled.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UIPageView, and UIListView.

virtual void onTouchEnded ( const CCPoint &  touchPoint)

virtual

A call back function called when widget is selected, and on touch ended.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UICheckBox, UIPageView, UIListView, and UIImageView.

var onTouchEnded ( var  touchPoint)

virtual

A call back function called when widget is selected, and on touch ended.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UICheckBox, UIPageView, UIListView, and UIImageView.

virtual void onTouchLongClicked ( const CCPoint &  touchPoint)

virtual

A call back function called when widget is selected, and on touch long clicked.

Parameters

touch

point

Reimplemented in UIScrollView, and UIListView.

var onTouchLongClicked ( var  touchPoint)

virtual

A call back function called when widget is selected, and on touch long clicked.

Parameters

touch

point

Reimplemented in UIScrollView, and UIListView.

virtual void onTouchMoved ( const CCPoint &  touchPoint)

virtual

A call back function called when widget is selected, and on touch moved.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UIPageView, and UIListView.

var onTouchMoved ( var  touchPoint)

virtual

A call back function called when widget is selected, and on touch moved.

Parameters

touch

point

Reimplemented in UIScrollView, UISlider, UIPageView, and UIListView.

void pushDownEvent ( )

protected

var pushDownEvent ( )

protected

void releaseUpEvent ( )

protected

var releaseUpEvent ( )

protected

virtual void removeAllChildren ( )

virtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Reimplemented in UIScrollView, UIPageView, UIListViewEx, and UIListView.

var removeAllChildren ( )

virtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Reimplemented in UIScrollView, UIPageView, UIListViewEx, and UIListView.

void removeAllChildrenAndCleanUp ( bool  cleanup)

inline

var removeAllChildrenAndCleanUp ( var  cleanup)

inline

virtual bool removeChild ( UIWidget *  child)

virtual

Removes a child from the container with a cleanup.

Parameters

child

The child widget which will be removed.

Returns

the result of removing, succeeded or failed.

Reimplemented in UIScrollView, UIPageView, UIListViewEx, and UIListView.

var removeChild ( var  child)

virtual

Removes a child from the container with a cleanup.

Parameters

child

The child widget which will be removed.

Returns

the result of removing, succeeded or failed.

Reimplemented in UIScrollView, UIPageView, UIListViewEx, and UIListView.

bool removeChild ( UIWidget *  child, bool  cleanup  )

inline

var removeChild ( var  child, var  cleanup  )

inline

virtual void removeFromParent ( )

virtual

Removes this widget itself from its parent widget.

If the widget orphan, then it will destroy itself.

var removeFromParent ( )

virtual

Removes this widget itself from its parent widget.

If the widget orphan, then it will destroy itself.

void removeFromParentAndCleanup ( bool  cleanup)

inline

var removeFromParentAndCleanup ( var  cleanup)

inline

void removeRenderer	(	CCNode *	renderer,
		bool	cleanup
	)

Remove a CCNode from widget.

renderer is a CCNode, it's for drawing

Parameters

renderer	A render node which needs to be removed
cleanup	true if all running actions and callbacks on the render node will be cleanup, false otherwise.

var removeRenderer	(	var	renderer,
		var	cleanup
	)

Remove a CCNode from widget.

renderer is a CCNode, it's for drawing

Parameters

renderer	A render node which needs to be removed
cleanup	true if all running actions and callbacks on the render node will be cleanup, false otherwise.

virtual void reorderChild ( UIWidget *  child)

virtual

Reorders a child according to a new z value.

Parameters

child	An already added child node. It MUST be already added.
zOrder	Z order for drawing priority and touched priority. Please refer to setZOrder(int)

var reorderChild ( var  child)

virtual

Reorders a child according to a new z value.

Parameters

child	An already added child node. It MUST be already added.
zOrder	Z order for drawing priority and touched priority. Please refer to setZOrder(int)

CCAction* runAction

(

CCAction *

action)

var runAction

(

var

action)

virtual void setActionManager ( CCActionManager *  actionManager)

virtual

var setActionManager ( var  actionManager)

virtual

void setActionTag

(

int

tag)

var setActionTag

(

var

tag)

virtual void setAnchorPoint ( const CCPoint &  pt)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the widget where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the widget.

Parameters

anchorPoint

The anchor point of widget.

Reimplemented in UITextField, UICheckBox, UIButton, UILabel, UIImageView, UILabelAtlas, and UILabelBMFont.

var setAnchorPoint ( var  pt)

virtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the widget where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the widget.

Parameters

anchorPoint

The anchor point of widget.

Reimplemented in UITextField, UICheckBox, UIButton, UILabel, UIImageView, UILabelAtlas, and UILabelBMFont.

void setBlendFunc

(

ccBlendFunc

blendFunc)

var setBlendFunc

(

var

blendFunc)

void setBright

(

bool

bright)

Sets whether the widget is bright.

The default value is true, a widget is default to bright

Parameters

visible

true if the widget is bright, false if the widget is dark.

var setBright

(

var

bright)

Sets whether the widget is bright.

The default value is true, a widget is default to bright

Parameters

visible

true if the widget is bright, false if the widget is dark.

void setBright ( bool  bright, bool  containChild  )

inline

var setBright ( var  bright, var  containChild  )

inline

void setBrightStyle

(

BrightStyle

style)

To set the bright style of widget.

See Also

BrightStyle

Parameters

style

BRIGHT_NORMAL the widget is normal state, BRIGHT_HIGHLIGHT the widget is height light state.

var setBrightStyle

(

var

style)

To set the bright style of widget.

See Also

BrightStyle

Parameters

style

BRIGHT_NORMAL the widget is normal state, BRIGHT_HIGHLIGHT the widget is height light state.

virtual void setCascadeColorEnabled ( bool  cascadeColorEnabled)

virtual

var setCascadeColorEnabled ( var  cascadeColorEnabled)

virtual

virtual void setCascadeOpacityEnabled ( bool  cascadeOpacityEnabled)

virtual

var setCascadeOpacityEnabled ( var  cascadeOpacityEnabled)

virtual

virtual void setColor ( const ccColor3B &  color)

virtual

Sets color to widget.

It default change the color of widget's children.

Parameters

color

Reimplemented in UIButton, UITextField, and UILayout.

var setColor ( var  color)

virtual

Sets color to widget.

It default change the color of widget's children.

Parameters

color

Reimplemented in UIButton, UITextField, and UILayout.

virtual void setEnabled ( bool  enabled)

virtual

Sets whether the widget is enabled.

Highest control of widget. The default value is true, a widget is default to enabled

Parameters

enabled

true if the widget is enabled, widget may be touched and visible, false if the widget is disabled, widget cannot be touched and hidden.

var setEnabled ( var  enabled)

virtual

Sets whether the widget is enabled.

Highest control of widget. The default value is true, a widget is default to enabled

Parameters

enabled

true if the widget is enabled, widget may be touched and visible, false if the widget is disabled, widget cannot be touched and hidden.

virtual void setFlipX ( bool  flipX)

inlinevirtual

Sets whether the widget should be flipped horizontally or not.

Parameters

bFlipX

true if the widget should be flipped horizaontally, false otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

var setFlipX ( var  flipX)

inlinevirtual

Sets whether the widget should be flipped horizontally or not.

Parameters

bFlipX

true if the widget should be flipped horizaontally, false otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

virtual void setFlipY ( bool  flipY)

inlinevirtual

Sets whether the widget should be flipped vertically or not.

Parameters

bFlipY

true if the widget should be flipped vertically, flase otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

var setFlipY ( var  flipY)

inlinevirtual

Sets whether the widget should be flipped vertically or not.

Parameters

bFlipY

true if the widget should be flipped vertically, flase otherwise.

Reimplemented in UICheckBox, UIButton, UILabel, and UIImageView.

void setFocused

(

bool

fucosed)

Sets whether the widget is on focused.

The default value is false, a widget is default to not on focused

Parameters

fucosed

true if the widget is on focused, false if the widget is not on focused.

var setFocused

(

var

fucosed)

Sets whether the widget is on focused.

The default value is false, a widget is default to not on focused

Parameters

fucosed

true if the widget is on focused, false if the widget is not on focused.

void setLayoutParameter

(

UILayoutParameter *

parameter)

Sets a LayoutParameter to widget.

See Also

LayoutParameter

Parameters

LayoutParameter	pointer
type	Relative or Linear

var setLayoutParameter

(

var

parameter)

Sets a LayoutParameter to widget.

See Also

LayoutParameter

Parameters

LayoutParameter	pointer
type	Relative or Linear

void setName

(

const char *

name)

Changes the name that is used to identify the widget easily.

Parameters

A	const char* that indentifies the widget.

var setName

(

var

name)

Changes the name that is used to identify the widget easily.

Parameters

A	const char* that indentifies the widget.

virtual void setOpacity ( int  opacity)

virtual

Sets opacity to widget.

It default change the opacity of widget's children.

Parameters

color

Reimplemented in UITextField, and UILayout.

var setOpacity ( var  opacity)

virtual

Sets opacity to widget.

It default change the opacity of widget's children.

Parameters

color

Reimplemented in UITextField, and UILayout.

void setParent

(

UIWidget *

parent)

Sets the parent widget.

Parameters

parent

A pointer to the parnet widget

var setParent

(

var

parent)

Sets the parent widget.

Parameters

parent

A pointer to the parnet widget

void setPosition

(

const CCPoint &

pos)

Changes the position (x,y) of the widget in OpenGL coordinates.

Usually we use ccp(x,y) to compose CCPoint object. The original point (0,0) is at the left-bottom corner of screen.

Parameters

position

The position (x,y) of the widget in OpenGL coordinates

var setPosition

(

var

pos)

Changes the position (x,y) of the widget in OpenGL coordinates.

Usually we use ccp(x,y) to compose CCPoint object. The original point (0,0) is at the left-bottom corner of screen.

Parameters

position

The position (x,y) of the widget in OpenGL coordinates

void setPositionPercent

(

const CCPoint &

percent)

Changes the position (x,y) of the widget in OpenGL coordinates.

Usually we use ccp(x,y) to compose CCPoint object. The original point (0,0) is at the left-bottom corner of screen.

Parameters

percent

The percent (x,y) of the widget in OpenGL coordinates

var setPositionPercent

(

var

percent)

Changes the position (x,y) of the widget in OpenGL coordinates.

Usually we use ccp(x,y) to compose CCPoint object. The original point (0,0) is at the left-bottom corner of screen.

Parameters

percent

The percent (x,y) of the widget in OpenGL coordinates

void setPositionType

(

PositionType

type)

Changes the position type of the widget.

See Also

PositionType

Parameters

type	the position type of widget

var setPositionType

(

var

type)

Changes the position type of the widget.

See Also

PositionType

Parameters

type	the position type of widget

void setRotation

(

float

rotation)

Sets the rotation (angle) of the widget in degrees.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotation

The roration of the widget in degrees.

var setRotation

(

var

rotation)

Sets the rotation (angle) of the widget in degrees.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotation

The roration of the widget in degrees.

void setRotationX

(

float

rotationX)

Sets the X rotation (angle) of the widget in degrees which performs a horizontal rotational skew.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotationX

The X rotation in degrees which performs a horizontal rotational skew.

var setRotationX

(

var

rotationX)

Sets the X rotation (angle) of the widget in degrees which performs a horizontal rotational skew.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotationX

The X rotation in degrees which performs a horizontal rotational skew.

void setRotationY

(

float

rotationY)

Sets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotationY

The Y rotation in degrees.

var setRotationY

(

var

rotationY)

Sets the Y rotation (angle) of the widget in degrees which performs a vertical rotational skew.

0 is the default rotation angle. Positive values rotate widget clockwise, and negative values for anti-clockwise.

Parameters

fRotationY

The Y rotation in degrees.

virtual void setScale ( float  fScale)

virtual

Changes both X and Y scale factor of the widget.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scale

The scale factor for both X and Y axis.

Reimplemented in UILabel.

var setScale ( var  fScale)

virtual

Changes both X and Y scale factor of the widget.

1.0 is the default scale factor. It modifies the X and Y scale at the same time.

Parameters

scale

The scale factor for both X and Y axis.

Reimplemented in UILabel.

virtual void setScaleX ( float  fScaleX)

virtual

Changes the scale factor on X axis of this widget.

The deafult value is 1.0 if you haven't changed it before

Parameters

fScaleX

The scale factor on X axis.

Reimplemented in UILabel.

var setScaleX ( var  fScaleX)

virtual

Changes the scale factor on X axis of this widget.

The deafult value is 1.0 if you haven't changed it before

Parameters

fScaleX

The scale factor on X axis.

Reimplemented in UILabel.

virtual void setScaleY ( float  fScaleY)

virtual

Changes the scale factor on Y axis of this widget.

The Default value is 1.0 if you haven't changed it before.

Parameters

fScaleY

The scale factor on Y axis.

Reimplemented in UILabel.

var setScaleY ( var  fScaleY)

virtual

Changes the scale factor on Y axis of this widget.

The Default value is 1.0 if you haven't changed it before.

Parameters

fScaleY

The scale factor on Y axis.

Reimplemented in UILabel.

virtual void setSize ( const CCSize &  size)

virtual

Changes the size that is widget's size.

Parameters

size	that is widget's size

var setSize ( var  size)

virtual

Changes the size that is widget's size.

Parameters

size	that is widget's size

virtual void setSizePercent ( const CCPoint &  percent)

virtual

Changes the percent that is widget's percent size.

Parameters

percent

that is widget's percent size

var setSizePercent ( var  percent)

virtual

Changes the percent that is widget's percent size.

Parameters

percent

that is widget's percent size

void setSizeType

(

SizeType

type)

Changes the size type of widget.

See Also

SizeType

Parameters

type	that is widget's size type

var setSizeType

(

var

type)

Changes the size type of widget.

See Also

SizeType

Parameters

type	that is widget's size type

void setTag

(

int

tag)

Changes the tag that is used to identify the widget easily.

Parameters

A	interger that indentifies the widget.

var setTag

(

var

tag)

Changes the tag that is used to identify the widget easily.

Parameters

A	interger that indentifies the widget.

void setTouchEnable ( bool  enabled, bool  containChildren = false  )

inline

These methods will be removed.

var setTouchEnable ( var  enabled, var  containChildren = false  )

inline

These methods will be removed.

virtual void setTouchEnabled ( bool  enabled)

virtual

Sets whether the widget is touch enabled.

The default value is false, a widget is default to touch disabled

Parameters

visible

true if the widget is touch enabled, false if the widget is touch disabled.

var setTouchEnabled ( var  enabled)

virtual

Sets whether the widget is touch enabled.

The default value is false, a widget is default to touch disabled

Parameters

visible

true if the widget is touch enabled, false if the widget is touch disabled.

void setUpdateEnabled

(

bool

enable)

Schedules the "update" method.

var setUpdateEnabled

(

var

enable)

Schedules the "update" method.

virtual void setUserObject ( CCObject *  pUserObject)

virtual

Returns a user assigned CCObject.

Similar to UserData, but instead of holding a void* it holds an object. The UserObject will be retained once in this method, and the previous UserObject (if existed) will be relese. The UserObject will be released in CCNode's destructure.

Parameters

A	user assigned CCObject

void setVisible

(

bool

visible)

Sets whether the widget is visible.

The default value is true, a widget is default to visible

Parameters

visible

true if the widget is visible, false if the widget is hidden.

var setVisible

(

var

visible)

Sets whether the widget is visible.

The default value is true, a widget is default to visible

Parameters

visible

true if the widget is visible, false if the widget is hidden.

void setWidgetParent ( UIWidget *  parent)

inline

var setWidgetParent ( var  parent)

inline

void setWidgetTag ( int  tag)

inline

var setWidgetTag ( var  tag)

inline

void setWidgetZOrder ( int  z)

inline

var setWidgetZOrder ( var  z)

inline

void setZOrder

(

int

z)

Sets the Z order which stands for the drawing order, and reorder this widget in its parent's children array.

The Z order of widget is relative to its "brothers": children of the same parent. It's nothing to do with OpenGL's z vertex. This one only affects the draw order of widgets in cocos2d. The larger number it is, the later this widget will be drawn in each message loop. Please refer to setVertexZ(float) for the difference.

Parameters

nZOrder

Z order of this widget.

var setZOrder

(

var

z)

Sets the Z order which stands for the drawing order, and reorder this widget in its parent's children array.

The Z order of widget is relative to its "brothers": children of the same parent. It's nothing to do with OpenGL's z vertex. This one only affects the draw order of widgets in cocos2d. The larger number it is, the later this widget will be drawn in each message loop. Please refer to setVertexZ(float) for the difference.

Parameters

nZOrder

Z order of this widget.

void stopAction

(

CCAction *

action)

var stopAction

(

var

action)

void stopActionByTag

(

int

tag)

var stopActionByTag

(

var

tag)

void stopAllActions

(

void

)

var stopAllActions

(

)

void updateAnchorPoint ( )

protected

var updateAnchorPoint ( )

protected

void updateSizeAndPosition

(

)

var updateSizeAndPosition

(

)

Member Data Documentation

CCPoint m_anchorPoint

protected

anchor point normalized

var m_anchorPoint

protected

anchor point normalized

bool m_bAffectByClipping

protected

var m_bAffectByClipping

protected

bool m_bBright

protected

is this widget bright

var m_bBright

protected

is this widget bright

bool m_bEnabled

protected

Highest control of widget.

bool m_bFocus

protected

is the widget on focus

var m_bFocus

protected

is the widget on focus

bool m_bIgnoreSize

protected

var m_bIgnoreSize

protected

bool m_bIsRunning

protected

var m_bIsRunning

protected

bool m_bTouchEnabled

protected

is this widget touch endabled

var m_bTouchEnabled

protected

is this widget touch endabled

bool m_bTouchPassedEnabled

protected

is the touch event should be passed

var m_bTouchPassedEnabled

protected

is the touch event should be passed

bool m_bUpdateEnabled

protected

is "update" method scheduled

var m_bUpdateEnabled

protected

is "update" method scheduled

bool m_bVisible

protected

is this widget visible

var m_bVisible

protected

is this widget visible

CCArray* m_children

protected

var m_children

protected

CCSize m_customSize

protected

var m_customSize

protected

BrightStyle m_eBrightStyle

protected

bright style

var m_eBrightStyle

protected

bright style

PositionType m_ePositionType

protected

var m_ePositionType

protected

SizeType m_eSizeType

protected

var m_eSizeType

protected

int m_nActionTag

protected

var m_nActionTag

protected

int m_nWidgetTag

protected

var m_nWidgetTag

protected

int m_nWidgetZOrder

protected

z-order value that affects the draw order and touch order

var m_nWidgetZOrder

protected

z-order value that affects the draw order and touch order

CCObject* m_pCancelListener

protected

var m_pCancelListener

protected

SEL_ReleaseEvent m_pfnCancelSelector

protected

var m_pfnCancelSelector

protected

SEL_MoveEvent m_pfnMoveSelector

protected

var m_pfnMoveSelector

protected

SEL_PushEvent m_pfnPushSelector

protected

var m_pfnPushSelector

protected

SEL_ReleaseEvent m_pfnReleaseSelector

protected

var m_pfnReleaseSelector

protected

SEL_TouchEvent m_pfnTouchEventSelector

protected

var m_pfnTouchEventSelector

protected

CCDictionary* m_pLayoutParameterDictionary

protected

var m_pLayoutParameterDictionary

protected

CCObject* m_pMoveListener

protected

var m_pMoveListener

protected

CCPoint m_positionPercent

protected

var m_positionPercent

protected

CCObject* m_pPushListener

protected

var m_pPushListener

protected

CCObject* m_pReleaseListener

protected

CCNode* m_pRenderer

protected

base renderer

var m_pRenderer

protected

base renderer

CCScheduler* m_pScheduler

protected

var m_pScheduler

protected

CCObject* m_pTouchEventListener

protected

var m_pTouchEventListener

protected

CCObject* m_pUserObject

protected

var m_pUserObject

protected

UIWidget* m_pWidgetParent

protected

parent of widget

var m_pWidgetParent

protected

parent of widget

CCSize m_size

protected

var m_size

protected

CCPoint m_sizePercent

protected

var m_sizePercent

protected

std::string m_strName

protected

var m_strName

protected

CCPoint m_touchEndPos

protected

touch ended point

var m_touchEndPos

protected

touch ended point

CCPoint m_touchMovePos

protected

touch moved point

var m_touchMovePos

protected

touch moved point

CCPoint m_touchStartPos

protected

touch began point

var m_touchStartPos

protected

touch began point

WidgetType m_WidgetType

protected

var m_WidgetType

protected

---

The documentation for this class was generated from the following file:

• /Users/cocos2d/MyWork/cocos2d-x/extensions/CocoStudio/GUI/BaseClasses/UIWidget.h
