By GLView you can operate the frame information of EGL view through some function. More...

#include <CCGLView.h>

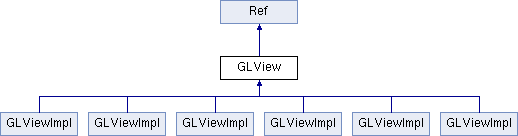

Inheritance diagram for GLView:

Public Member Functions
	GLView ()
	ctor ()
	GLView ()
virtual	~GLView ()
virtual void	end ()=0
	Force destroying EGL view, subclass must implement this method. More...

var	end ()
	Force destroying EGL view, subclass must implement this method. More...

local	end ()
	Force destroying EGL view, subclass must implement this method. More...

virtual bool	isOpenGLReady ()=0
	Get whether opengl render system is ready, subclass must implement this method. More...

virtual void	swapBuffers ()=0
	Exchanges the front and back buffers, subclass must implement this method. More...

virtual void	setIMEKeyboardState (bool open)=0
	Open or close IME keyboard , subclass must implement this method. More...

var	setIMEKeyboardState ( var open)
	Open or close IME keyboard , subclass must implement this method. More...

local	setIMEKeyboardState ( local open)
	Open or close IME keyboard , subclass must implement this method. More...

virtual void	setIMEKeyboardState (bool open, std::string str)=0
var	setIMEKeyboardState ( var open, var str)
virtual bool	windowShouldClose ()
	When the window is closed, it will return false if the platforms is Ios or Android. More...

virtual void	pollInputEvents ()
var	pollInputEvents ()
local	pollInputEvents ()
virtual void	pollEvents ()
	Polls the events. More...

var	pollEvents ()
	Polls the events. More...

local	pollEvents ()
	Polls the events. More...

virtual const Size &	getFrameSize () const
	Get the frame size of EGL view. More...

virtual void	setFrameSize (float width, float height)
	Set the frame size of EGL view. More...

var	setFrameSize ( var width, var height)
	Set the frame size of EGL view. More...

local	setFrameSize ( local width, local height)
	Set the frame size of EGL view. More...

virtual void	setFrameZoomFactor (float zoomFactor)
	Set zoom factor for frame. More...

local	setFrameZoomFactor ( local zoomFactor)
	Set zoom factor for frame. More...

virtual float	getFrameZoomFactor () const
	Get zoom factor for frame. More...

var	getFrameZoomFactor ()
	Get zoom factor for frame. More...

local	getFrameZoomFactor ()
	Get zoom factor for frame. More...

virtual void	setCursorVisible (bool isVisible)
	Hide or Show the mouse cursor if there is one. More...

var	setCursorVisible ( var isVisible)
	Hide or Show the mouse cursor if there is one. More...

local	setCursorVisible ( local isVisible)
	Hide or Show the mouse cursor if there is one. More...

virtual int	getRetinaFactor () const
	Get retina factor. More...

virtual bool	setContentScaleFactor (float scaleFactor)
	Only works on ios platform. More...

virtual float	getContentScaleFactor () const
	Only works on ios platform. More...

var	getContentScaleFactor ()
	Only works on ios platform. More...

local	getContentScaleFactor ()
	Only works on ios platform. More...

virtual bool	isRetinaDisplay () const
	Returns whether or not the view is in Retina Display mode. More...

virtual void *	getEAGLView () const
virtual Size	getRenerTargetSize () const =0
local	getRenerTargetSize ()
virtual const Mat4 &	getOrientationMatrix () const =0
local	getOrientationMatrix ()
virtual const Mat4 &	getReverseOrientationMatrix () const =0
var	getReverseOrientationMatrix ()
local	getReverseOrientationMatrix ()
virtual Size	getVisibleSize () const
	Get the visible area size of opengl viewport. More...

var	getVisibleSize ()
	Get the visible area size of opengl viewport. More...

local	getVisibleSize ()
	Get the visible area size of opengl viewport. More...

virtual Vec2	getVisibleOrigin () const
	Get the visible origin point of opengl viewport. More...

local	getVisibleOrigin ()
	Get the visible origin point of opengl viewport. More...

virtual Rect	getVisibleRect () const
	Get the visible rectangle of opengl viewport. More...

virtual void	setDesignResolutionSize (float width, float height, ResolutionPolicy resolutionPolicy)
	Set the design resolution size. More...

local	setDesignResolutionSize ( local width, local height, local resolutionPolicy)
	Set the design resolution size. More...

virtual const Size &	getDesignResolutionSize () const
	Get design resolution size. More...

virtual void	setViewPortInPoints (float x, float y, float w, float h)
	Set opengl view port rectangle with points. More...

virtual void	setScissorInPoints (float x, float y, float w, float h)
	Set Scissor rectangle with points. More...

local	setScissorInPoints ( local x, local y, local w, local h)
	Set Scissor rectangle with points. More...

virtual bool	isScissorEnabled ()
	Get whether GL_SCISSOR_TEST is enable. More...

virtual Rect	getScissorRect () const
	Get the current scissor rectangle. More...

var	getScissorRect ()
	Get the current scissor rectangle. More...

local	getScissorRect ()
	Get the current scissor rectangle. More...

virtual void	setViewName (const std::string &viewname)
	Set the view name. More...

const std::string &	getViewName () const
	Get the view name. More...

virtual void	handleTouchesBegin (int num, intptr_t ids[], float xs[], float ys[])
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

virtual void	handleTouchesMove (int num, intptr_t ids[], float xs[], float ys[])
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

var	handleTouchesMove ( var num)
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

local	handleTouchesMove ( local num)
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

virtual void	handleTouchesEnd (int num, intptr_t ids[], float xs[], float ys[])
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

local	handleTouchesEnd ( local num)
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

virtual void	handleTouchesCancel (int num, intptr_t ids[], float xs[], float ys[])
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

local	handleTouchesCancel ( local num)
	Touch events are handled by default; if you want to customize your handlers, please override this function. More...

const Rect &	getViewPortRect () const
	Get the opengl view port rectangle. More...

std::vector< Touch * >	getAllTouches () const
	Get list of all active touches. More...

float	getScaleX () const
	Get scale factor of the horizontal direction. More...

var	getScaleX ()
	Get scale factor of the horizontal direction. More...

local	getScaleX ()
	Get scale factor of the horizontal direction. More...

float	getScaleY () const
	Get scale factor of the vertical direction. More...

var	getScaleY ()
	Get scale factor of the vertical direction. More...

local	getScaleY ()
	Get scale factor of the vertical direction. More...

ResolutionPolicy	getResolutionPolicy () const
	Returns the current Resolution policy. More...

var	getResolutionPolicy ()
	Returns the current Resolution policy. More...

local	getResolutionPolicy ()
	Returns the current Resolution policy. More...

virtual HWND	getWin32Window ()=0
var	getWin32Window ()
local	getWin32Window ()
virtual id	getCocoaWindow ()=0
var	getCocoaWindow ()
local	getCocoaWindow ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
	Destructor. More...

Static Public Member Functions
static void	setGLContextAttrs (GLContextAttrs &glContextAttrs)
	Static method and member so that we can modify it on all platforms before create OpenGL context. More...

var	setGLContextAttrs ( var glContextAttrs)
	Static method and member so that we can modify it on all platforms before create OpenGL context. More...

local	setGLContextAttrs ( local glContextAttrs)
	Static method and member so that we can modify it on all platforms before create OpenGL context. More...

static GLContextAttrs	getGLContextAttrs ()
	Return the OpenGL context attrs. More...

var	getGLContextAttrs ()
	Return the OpenGL context attrs. More...

local	getGLContextAttrs ()
	Return the OpenGL context attrs. More...

Static Public Attributes
static GLContextAttrs	_glContextAttrs
	The OpenGL context attrs. More...

var	_glContextAttrs
	The OpenGL context attrs. More...

local	_glContextAttrs
	The OpenGL context attrs. More...

Protected Member Functions
void	updateDesignResolutionSize ()
var	updateDesignResolutionSize ()
local	updateDesignResolutionSize ()
void	handleTouchesOfEndOrCancel (EventTouch::EventCode eventCode, int num, intptr_t ids[], float xs[], float ys[])
var	handleTouchesOfEndOrCancel ( var eventCode, var num)
local	handleTouchesOfEndOrCancel ( local eventCode, local num)
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Protected Attributes
Size	_screenSize
Size	_designResolutionSize
var	_designResolutionSize
local	_designResolutionSize
Rect	_viewPortRect
var	_viewPortRect
local	_viewPortRect
std::string	_viewName
var	_viewName
local	_viewName
float	_scaleX
var	_scaleX
local	_scaleX
float	_scaleY
var	_scaleY
local	_scaleY
ResolutionPolicy	_resolutionPolicy
var	_resolutionPolicy
local	_resolutionPolicy
Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Detailed Description

By GLView you can operate the frame information of EGL view through some function.

Constructor & Destructor Documentation

GLView ( )

virtual ~GLView ( )

virtual

Member Function Documentation

virtual void end ( )

pure virtual

Force destroying EGL view, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

std::vector<Touch*> getAllTouches ( ) const

Get list of all active touches.

Returns: A list of all active touches.

virtual id getCocoaWindow ( )

pure virtual

Implemented in GLViewImpl.

virtual float getContentScaleFactor ( ) const

inlinevirtual

Only works on ios platform.

Get Content Scale of the Factor.

Reimplemented in GLViewImpl.

virtual const Size&
getDesignResolutionSize ( ) const

virtual

Get design resolution size.

Default resolution size is the same as 'getFrameSize'.

Returns: The design resolution size.

virtual void* getEAGLView ( ) const

inlinevirtual

Reimplemented in GLViewImpl.

virtual const Size& getFrameSize ( ) const

virtual

Get the frame size of EGL view.

In general, it returns the screen size since the EGL view is a fullscreen view.

Returns: The frame size of EGL view.

virtual float getFrameZoomFactor ( ) const

inlinevirtual

Get zoom factor for frame.

This methods are for debugging big resolution (e.g.new ipad) app on desktop.

Returns: The zoom factor for frame.

Reimplemented in GLViewImpl.

static GLContextAttrs
getGLContextAttrs ( )

static

Return the OpenGL context attrs.

Returns: Return the OpenGL context attrs.

virtual const Mat4&
getOrientationMatrix ( ) const

pure virtual

Implemented in GLViewImpl.

virtual Size getRenerTargetSize ( ) const

pure virtual

Implemented in GLViewImpl, and GLViewImpl.

ResolutionPolicy
getResolutionPolicy ( ) const

inline

Returns the current Resolution policy.

Returns: The current Resolution policy.

virtual int getRetinaFactor ( ) const

inlinevirtual

Get retina factor.

Returns: The retina factor.

Reimplemented in GLViewImpl.

virtual const Mat4&
getReverseOrientationMatrix ( ) const

pure virtual

Implemented in GLViewImpl.

float getScaleX ( ) const

Get scale factor of the horizontal direction.

Returns: Scale factor of the horizontal direction.

float getScaleY ( ) const

Get scale factor of the vertical direction.

Returns: Scale factor of the vertical direction.

virtual Rect getScissorRect ( ) const

virtual

Get the current scissor rectangle.

Returns: The current scissor rectangle.

const std::string& getViewName ( ) const

Get the view name.

Returns: The view name.

const Rect& getViewPortRect ( ) const

Get the opengl view port rectangle.

Returns: Return the opengl view port rectangle.

virtual Vec2 getVisibleOrigin ( ) const

virtual

Get the visible origin point of opengl viewport.

Returns: The visible origin point of opengl viewport.

virtual Rect getVisibleRect ( ) const

virtual

Get the visible rectangle of opengl viewport.

Returns: The visible rectangle of opengl viewport.

virtual Size getVisibleSize ( ) const

virtual

Get the visible area size of opengl viewport.

Returns: The visible area size of opengl viewport.

virtual HWND getWin32Window ( )

pure virtual

Implemented in GLViewImpl.

virtual void handleTouchesBegin	(	int	num,
		intptr_t	ids[],
		float	xs[],
		float	ys[]
	)

virtual

Touch events are handled by default; if you want to customize your handlers, please override this function.

Parameters

num	The number of touch.
ids	The identity of the touch.
xs	The points of x.
ys	The points of y.

virtual void handleTouchesCancel	(	int	num,
		intptr_t	ids[],
		float	xs[],
		float	ys[]
	)

virtual

Touch events are handled by default; if you want to customize your handlers, please override this function.

Parameters

num	The number of touch.
ids	The identity of the touch.
xs	The points of x.
ys	The points of y.

virtual void handleTouchesEnd	(	int	num,
		intptr_t	ids[],
		float	xs[],
		float	ys[]
	)

virtual

Touch events are handled by default; if you want to customize your handlers, please override this function.

Parameters

num	The number of touch.
ids	The identity of the touch.
xs	The points of x.
ys	The points of y.

virtual void handleTouchesMove	(	int	num,
		intptr_t	ids[],
		float	xs[],
		float	ys[]
	)

virtual

Touch events are handled by default; if you want to customize your handlers, please override this function.

Parameters

num	The number of touch.
ids	The identity of the touch.
xs	The points of x.
ys	The points of y.

void handleTouchesOfEndOrCancel	(	EventTouch::EventCode	eventCode,
		int	num,
		intptr_t	ids[],
		float	xs[],
		float	ys[]
	)

protected

virtual bool isOpenGLReady ( )

pure virtual

Get whether opengl render system is ready, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

virtual bool isRetinaDisplay ( ) const

inlinevirtual

Returns whether or not the view is in Retina Display mode.

Returns: Returns whether or not the view is in Retina Display mode.

Reimplemented in GLViewImpl.

virtual bool isScissorEnabled ( )

virtual

Get whether GL_SCISSOR_TEST is enable.

Returns: Whether GL_SCISSOR_TEST is enable.

virtual void pollEvents ( )

virtual

Polls the events.

Reimplemented in GLViewImpl.

virtual void pollInputEvents ( )

virtual

Deprecated:: Polls input events.

Subclass must implement methods if platform does not provide event callbacks.

virtual bool setContentScaleFactor ( float scaleFactor )

inlinevirtual

Only works on ios platform.

Set Content Scale of the Factor.

Reimplemented in GLViewImpl.

virtual void setCursorVisible ( bool isVisible )

inlinevirtual

Hide or Show the mouse cursor if there is one.

Parameters

isVisible Hide or Show the mouse cursor if there is one.

Reimplemented in GLViewImpl.

virtual void setDesignResolutionSize	(	float	width,
		float	height,
		ResolutionPolicy	resolutionPolicy
	)

virtual

Set the design resolution size.

Parameters

width	Design resolution width.
height	Design resolution height.
resolutionPolicy	The resolution policy desired, you may choose: [1] EXACT_FIT Fill screen by stretch-to-fit: if the design resolution ratio of width to height is different from the screen resolution ratio, your game view will be stretched. [2] NO_BORDER Full screen without black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two areas of your game view will be cut. [3] SHOW_ALL Full screen with black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two black borders will be shown.

virtual void setFrameSize	(	float	width,
		float	height
	)

virtual

Set the frame size of EGL view.

Parameters

width	The width of the fram size.
height	The height of the fram size.

Reimplemented in GLViewImpl, and GLViewImpl.

virtual void setFrameZoomFactor ( float zoomFactor )

inlinevirtual

Set zoom factor for frame.

This methods are for debugging big resolution (e.g.new ipad) app on desktop.

Parameters

zoomFactor The zoom factor for frame.

Reimplemented in GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

static void setGLContextAttrs ( GLContextAttrs & glContextAttrs )

static

Static method and member so that we can modify it on all platforms before create OpenGL context.

Parameters

glContextAttrs The OpenGL context attrs.

virtual void setIMEKeyboardState ( bool open )

pure virtual

Open or close IME keyboard , subclass must implement this method.

Parameters

open	Open or close IME keyboard.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void setIMEKeyboardState	(	bool	open,
		std::string	str
	)

pure virtual

Implemented in GLViewImpl, and GLViewImpl.

virtual void setScissorInPoints	(	float	x,
		float	y,
		float	w,
		float	h
	)

virtual

Set Scissor rectangle with points.

Parameters

x	Set the points of x.
y	Set the points of y.
w	Set the width of the view port
h	Set the Height of the view port.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void setViewName ( const std::string & viewname )

virtual

Set the view name.

Parameters

viewname A string will be set to the view as name.

virtual void setViewPortInPoints	(	float	x,
		float	y,
		float	w,
		float	h
	)

virtual

Set opengl view port rectangle with points.

Parameters

x	Set the points of x.
y	Set the points of y.
w	Set the width of the view port
h	Set the Height of the view port.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void swapBuffers ( )

pure virtual

Exchanges the front and back buffers, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

void updateDesignResolutionSize ( )

protected

virtual bool windowShouldClose ( )

inlinevirtual

When the window is closed, it will return false if the platforms is Ios or Android.

If the platforms is windows or Mac,it will return true.

Returns: In ios and android it will return false,if in windows or Mac it will return true.

Reimplemented in GLViewImpl.

Member Data Documentation

Size _designResolutionSize

protected

GLContextAttrs _glContextAttrs

static

The OpenGL context attrs.

ResolutionPolicy _resolutionPolicy

protected

float _scaleX

protected

float _scaleY

protected

Size _screenSize

protected

std::string _viewName

protected

Rect _viewPortRect

protected

The documentation for this class was generated from the following file:

/Users/minggo/SourceCode/cocos2d-x/cocos/platform/CCGLView.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
