CCGridAction Class Reference

Base class for Grid actions. More...

#include <CCActionGrid.h>

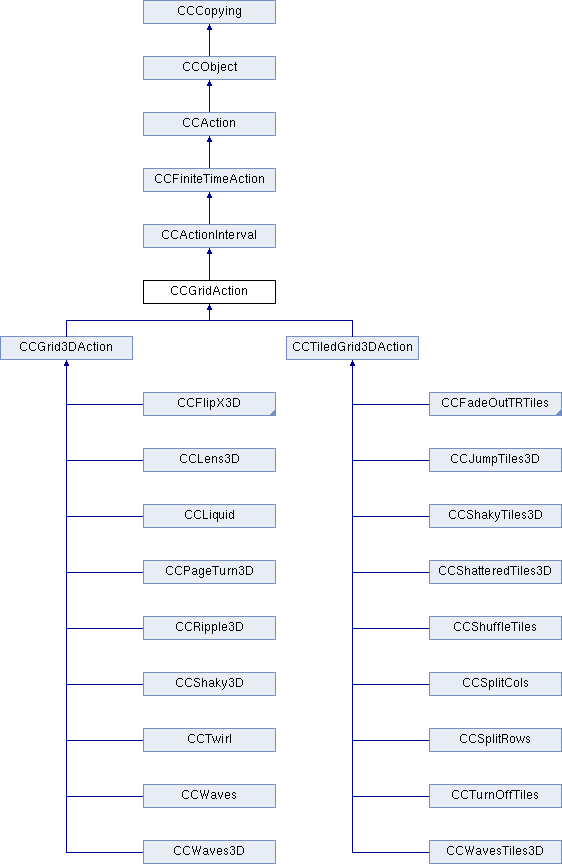

Inheritance diagram for CCGridAction:
CCActionInterval CCFiniteTimeAction CCAction CCObject CCCopying CCGrid3DAction CCTiledGrid3DAction CCFlipX3D CCLens3D CCLiquid CCPageTurn3D CCRipple3D CCShaky3D CCTwirl CCWaves CCWaves3D CCFadeOutTRTiles CCJumpTiles3D CCShakyTiles3D CCShatteredTiles3D CCShuffleTiles CCSplitCols CCSplitRows CCTurnOffTiles CCWavesTiles3D

Public Member Functions

virtual CCObjectcopyWithZone (CCZone *pZone)
virtual void startWithTarget (CCNode *pTarget)
 called before the action start. It will also set the target. More...

virtual CCActionIntervalreverse (void)
 returns a reversed action More...

virtual bool initWithDuration (float duration, const CCSize &gridSize)
 initializes the action with size and duration More...

virtual CCGridBasegetGrid (void)
 returns the grid More...

- Public Member Functions inherited from CCActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

bool initWithDuration (float d)
 initializes the action More...

virtual bool isDone (void)
 returns true if the action has finished More...

virtual void step (float dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
- Public Member Functions inherited from CCFiniteTimeAction
 CCFiniteTimeAction ()
virtual ~CCFiniteTimeAction ()
float getDuration (void)
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from CCAction
 CCAction (void)
virtual ~CCAction (void)
const char * description ()
virtual void stop (void)
 called after the action has finished. More...

virtual void update (float time)
 called once per frame. More...

CCNodegetTarget (void)
void setTarget (CCNode *pTarget)
 The action will modify the target properties. More...

CCNodegetOriginalTarget (void)
void setOriginalTarget (CCNode *pOriginalTarget)
 Set the original target, since target can be nil. More...

int getTag (void)
void setTag (int nTag)
- Public Member Functions inherited from CCObject
 CCObject (void)
virtual ~CCObject (void)
void release (void)
void retain (void)
CCObjectautorelease (void)
CCObjectcopy (void)
bool isSingleReference (void) const
unsigned int retainCount (void) const
virtual bool isEqual (const CCObject *pObject)
virtual void acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions

static CCGridActioncreate (float duration, const CCSize &gridSize)
- Static Public Member Functions inherited from CCActionInterval
static CCActionIntervalcreate (float d)
 creates the action More...


Protected Attributes

CCSize m_sGridSize
- Protected Attributes inherited from CCActionInterval
float m_elapsed
bool m_bFirstTick
- Protected Attributes inherited from CCFiniteTimeAction
float m_fDuration
 duration in seconds More...

- Protected Attributes inherited from CCAction
CCNodem_pOriginalTarget
CCNodem_pTarget
 The "target". More...

int m_nTag
 The action tag. More...

- Protected Attributes inherited from CCObject
unsigned int m_uReference
unsigned int m_uAutoReleaseCount

Additional Inherited Members

- Public Attributes inherited from CCObject
unsigned int m_uID
int m_nLuaID

Detailed Description

Base class for Grid actions.

Member Function Documentation

static CCGridAction* create ( float  duration,
const CCSize gridSize
)
static

creates the action with size and duration

virtual CCGridBase* getGrid ( void  )
virtual

returns the grid

Reimplemented in CCTiledGrid3DAction, and CCGrid3DAction.

virtual bool initWithDuration ( float  duration,
const CCSize gridSize
)
virtual

initializes the action with size and duration

virtual CCActionInterval* reverse ( void  )
virtual

returns a reversed action

Reimplemented from CCActionInterval.

virtual void startWithTarget ( CCNode pTarget)
virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

Reimplemented in CCSplitCols, CCSplitRows, CCTurnOffTiles, and CCShuffleTiles.

Member Data Documentation

CCSize m_sGridSize
protected

The documentation for this class was generated from the following file:
