MotionStreak. More...

#include <CCMotionStreak.h>

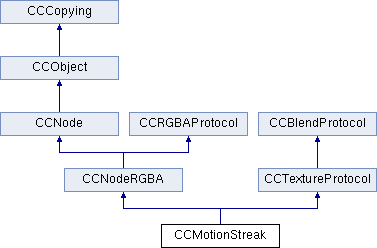

Inheritance diagram for CCMotionStreak:

Public Member Functions
	CCMotionStreak ()
virtual	~CCMotionStreak ()
bool	initWithFade (float fade, float minSeg, float stroke, const ccColor3B &color, const char *path)
	initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture filename More...

bool	initWithFade (float fade, float minSeg, float stroke, const ccColor3B &color, CCTexture2D *texture)
	initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture More...

void	tintWithColor (ccColor3B colors)
	color used for the tint More...

void	reset ()
	Remove all living segments of the ribbon. More...

virtual void	setPosition (const CCPoint &position)
	Override super methods. More...

local	setPosition ( local position)
	Override super methods. More...

virtual void	draw ()
	Override this method to draw your own node. More...

virtual void	update (float delta)
local	update ( local delta)
virtual CCTexture2D *	getTexture (void)
	Returns the currently used texture. More...

var	getTexture ()
	Returns the currently used texture. More...

local	getTexture ()
	Returns the currently used texture. More...

virtual void	setTexture (CCTexture2D *texture)
	Sets a new texuture. More...

local	setTexture ( local texture)
	Sets a new texuture. More...

virtual void	setBlendFunc (ccBlendFunc blendFunc)
	Sets the source blending function. More...

local	setBlendFunc ( local blendFunc)
	Sets the source blending function. More...

virtual ccBlendFunc	getBlendFunc (void)
	Returns the blending function that is currently being used. More...

virtual GLubyte	getOpacity (void)
	Returns the opacity. More...

virtual void	setOpacity (GLubyte opacity)
	Changes the opacity. More...

local	setOpacity ( local opacity)
	Changes the opacity. More...

virtual void	setOpacityModifyRGB (bool bValue)
	Changes the OpacityModifyRGB property. More...

local	setOpacityModifyRGB ( local bValue)
	Changes the OpacityModifyRGB property. More...

virtual bool	isOpacityModifyRGB (void)
	Returns whether or not the opacity will be applied using glColor(R,G,B,opacity) or glColor(opacity, opacity, opacity, opacity) More...

bool	isFastMode ()
	When fast mode is enabled, new points are added faster but with lower precision. More...

void	setFastMode (bool bFastMode)
bool	isStartingPositionInitialized ()
local	isStartingPositionInitialized ()
void	setStartingPositionInitialized (bool bStartingPositionInitialized)
local	setStartingPositionInitialized ( local bStartingPositionInitialized)
Public Member Functions inherited from CCNodeRGBA
	CCNodeRGBA ()
virtual	~CCNodeRGBA ()
virtual bool	init ()
	Initializes the instance of CCNode. More...

virtual GLubyte	getDisplayedOpacity ()
	Returns the displayed opacity. More...

virtual void	updateDisplayedOpacity (GLubyte parentOpacity)
	recursive method that updates the displayed opacity. More...

virtual bool	isCascadeOpacityEnabled ()
	whether or not opacity should be propagated to its children. More...

virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
virtual const ccColor3B &	getColor (void)
	Returns color that is currently used. More...

virtual const ccColor3B &	getDisplayedColor ()
	Returns the displayed color. More...

virtual void	setColor (const ccColor3B &color)
	@ More...

virtual void	updateDisplayedColor (const ccColor3B &parentColor)
	recursive method that updates display color More...

virtual bool	isCascadeColorEnabled ()
	whether or not color should be propagated to its children. More...

virtual void	setCascadeColorEnabled (bool cascadeColorEnabled)
Public Member Functions inherited from CCNode
virtual CCCamera *	getCamera ()
	Returns a camera object that lets you move the node using a gluLookAt. More...

virtual bool	isRunning ()
	Returns whether or not the node accepts event callbacks. More...

virtual void	cleanup (void)
	Stops all running actions and schedulers. More...

virtual void	visit (void)
	Visits this node's children and draw them recursively. More...

CCRect	boundingBox (void)
	Returns a "local" axis aligned bounding box of the node. More...

virtual void	setZOrder (int zOrder)
	Sets the Z order which stands for the drawing order, and reorder this node in its parent's children array. More...

virtual void	_setZOrder (int z)
	Sets the z order which stands for the drawing order. More...

virtual int	getZOrder ()
	Gets the Z order of this node. More...

virtual void	setVertexZ (float vertexZ)
	Sets the real OpenGL Z vertex. More...

virtual float	getVertexZ ()
	Gets OpenGL Z vertex of this node. More...

virtual void	setScaleX (float fScaleX)
	Changes the scale factor on X axis of this node. More...

virtual float	getScaleX ()
	Returns the scale factor on X axis of this node. More...

virtual void	setScaleY (float fScaleY)
	Changes the scale factor on Y axis of this node. More...

virtual float	getScaleY ()
	Returns the scale factor on Y axis of this node. More...

virtual void	setScale (float scale)
	Changes both X and Y scale factor of the node. More...

virtual float	getScale ()
	Gets the scale factor of the node, when X and Y have the same scale factor. More...

virtual void	setScale (float fScaleX, float fScaleY)
	Changes both X and Y scale factor of the node. More...

virtual const CCPoint &	getPosition ()
	Gets the position (x,y) of the node in OpenGL coordinates. More...

virtual void	setPosition (float x, float y)
	Sets position in a more efficient way. More...

virtual void	getPosition (float x, float y)
	Gets position in a more efficient way, returns two number instead of a CCPoint object. More...

virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...

virtual float	getPositionX (void)
virtual void	setPositionY (float y)
virtual float	getPositionY (void)
virtual void	setSkewX (float fSkewX)
	Changes the X skew angle of the node in degrees. More...

virtual float	getSkewX ()
	Returns the X skew angle of the node in degrees. More...

virtual void	setSkewY (float fSkewY)
	Changes the Y skew angle of the node in degrees. More...

virtual float	getSkewY ()
	Returns the Y skew angle of the node in degrees. More...

virtual void	setAnchorPoint (const CCPoint &anchorPoint)
	Sets the anchor point in percent. More...

virtual const CCPoint &	getAnchorPoint ()
	Returns the anchor point in percent. More...

virtual const CCPoint &	getAnchorPointInPoints ()
	Returns the anchorPoint in absolute pixels. More...

virtual void	setContentSize (const CCSize &contentSize)
	Sets the untransformed size of the node. More...

virtual const CCSize &	getContentSize () const
	Returns the untransformed size of the node. More...

virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...

virtual bool	isVisible ()
	Determines if the node is visible. More...

virtual void	setRotation (float fRotation)
	Sets the rotation (angle) of the node in degrees. More...

virtual float	getRotation ()
	Returns the rotation of the node in degrees. More...

virtual void	setRotationX (float fRotaionX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual float	getRotationX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual void	setRotationY (float fRotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual float	getRotationY ()
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual void	setOrderOfArrival (unsigned int uOrderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...

virtual unsigned int	getOrderOfArrival ()
	Returns the arrival order, indecates which children is added previously. More...

virtual void	setGLServerState (ccGLServerState glServerState)
	Sets the state of OpenGL server side. More...

virtual ccGLServerState	getGLServerState ()
	Returns the state of OpenGL server side. More...

virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool	isIgnoreAnchorPointForPosition ()
	Gets whether the anchor point will be (0,0) when you position this node. More...

virtual void	addChild (CCNode *child)
	Adds a child to the container with z-order as 0. More...

virtual void	addChild (CCNode *child, int zOrder)
	Adds a child to the container with a z-order. More...

virtual void	addChild (CCNode *child, int zOrder, int tag)
	Adds a child to the container with z order and tag. More...

CCNode *	getChildByTag (int tag)
	Gets a child from the container with its tag. More...

virtual CCArray *	getChildren ()
	Return an array of children. More...

unsigned int	getChildrenCount (void) const
	Get the amount of children. More...

virtual void	setParent (CCNode *parent)
	Sets the parent node. More...

virtual CCNode *	getParent ()
	Returns a pointer to the parent node. More...

virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...

virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...

virtual void	removeChild (CCNode *child)
	Removes a child from the container with a cleanup. More...

virtual void	removeChild (CCNode *child, bool cleanup)
	Removes a child from the container. More...

virtual void	removeChildByTag (int tag)
	Removes a child from the container by tag value with a cleanup. More...

virtual void	removeChildByTag (int tag, bool cleanup)
	Removes a child from the container by tag value. More...

virtual void	removeAllChildren ()
	Removes all children from the container with a cleanup. More...

virtual void	removeAllChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void	reorderChild (CCNode *child, int zOrder)
	Reorders a child according to a new z value. More...

virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

virtual CCGridBase *	getGrid ()
	Returns a grid object that is used when applying effects. More...

virtual void	setGrid (CCGridBase *pGrid)
	Changes a grid object that is used when applying effects. More...

virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...

virtual void	setTag (int nTag)
	Changes the tag that is used to identify the node easily. More...

virtual void *	getUserData ()
	Returns a custom user data pointer. More...

virtual void	setUserData (void *pUserData)
	Sets a custom user data pointer. More...

virtual CCObject *	getUserObject ()
	Returns a user assigned CCObject. More...

virtual void	setUserObject (CCObject *pUserObject)
	Returns a user assigned CCObject. More...

virtual CCGLProgram *	getShaderProgram ()
	Return the shader program currently used for this node. More...

virtual void	setShaderProgram (CCGLProgram *pShaderProgram)
	Sets the shader program for this node. More...

virtual void	registerScriptHandler (int handler)
	Registers a script function that will be called in onEnter() & onExit() seires functions. More...

virtual void	unregisterScriptHandler (void)
	Unregisters a script function that will be called in onEnter() & onExit() series functions. More...

int	getScriptHandler ()
	Gets script handler for onEnter/onExit event. More...

void	scheduleUpdateWithPriorityLua (int nHandler, int priority)
	Schedules for lua script. More...

virtual void	onEnter ()
	Event callback that is invoked every time when CCNode enters the 'stage'. More...

virtual void	onEnterTransitionDidFinish ()
	Event callback that is invoked when the CCNode enters in the 'stage'. More...

virtual void	onExit ()
	Event callback that is invoked every time the CCNode leaves the 'stage'. More...

virtual void	onExitTransitionDidStart ()
	Event callback that is called every time the CCNode leaves the 'stage'. More...

virtual void	setActionManager (CCActionManager *actionManager)
	Sets the CCActionManager object that is used by all actions. More...

virtual CCActionManager *	getActionManager ()
	Gets the CCActionManager object that is used by all actions. More...

CCAction *	runAction (CCAction *action)
	Executes an action, and returns the action that is executed. More...

void	stopAllActions (void)
	Stops and removes all actions from the running action list . More...

void	stopAction (CCAction *action)
	Stops and removes an action from the running action list. More...

void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...

CCAction *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...

unsigned int	numberOfRunningActions (void)
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

virtual void	setScheduler (CCScheduler *scheduler)
	Sets a CCScheduler object that is used to schedule all "updates" and timers. More...

virtual CCScheduler *	getScheduler ()
	Gets a CCSheduler object. More...

bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...

void	scheduleUpdate (void)
	Schedules the "update" method. More...

void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...

void	unscheduleUpdate (void)
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...

void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...

void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...

void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...

void	unscheduleAllSelectors (void)
	Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

void	resumeSchedulerAndActions (void)
	Resumes all scheduled selectors and actions. More...

void	pauseSchedulerAndActions (void)
	Pauses all scheduled selectors and actions. More...

void	transform (void)
	Performs OpenGL view-matrix transformation based on position, scale, rotation and other attributes. More...

void	transformAncestors (void)
	Performs OpenGL view-matrix transformation of it's ancestors. More...

virtual void	updateTransform (void)
	Calls children's updateTransform() method recursively. More...

virtual CCAffineTransform	nodeToParentTransform (void)
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual CCAffineTransform	parentToNodeTransform (void)
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual CCAffineTransform	nodeToWorldTransform (void)
	Returns the world affine transform matrix. More...

virtual CCAffineTransform	worldToNodeTransform (void)
	Returns the inverse world affine transform matrix. More...

CCPoint	convertToNodeSpace (const CCPoint &worldPoint)
	Converts a Point to node (local) space coordinates. More...

CCPoint	convertToWorldSpace (const CCPoint &nodePoint)
	Converts a Point to world space coordinates. More...

CCPoint	convertToNodeSpaceAR (const CCPoint &worldPoint)
	Converts a Point to node (local) space coordinates. More...

CCPoint	convertToWorldSpaceAR (const CCPoint &nodePoint)
	Converts a local Point to world space coordinates.The result is in Points. More...

CCPoint	convertTouchToNodeSpace (CCTouch *touch)
	convenience methods which take a CCTouch instead of CCPoint More...

CCPoint	convertTouchToNodeSpaceAR (CCTouch *touch)
	converts a CCTouch (world coordinates) into a local coordinate. More...

void	setAdditionalTransform (const CCAffineTransform &additionalTransform)
	Sets the additional transform. More...

CCComponent *	getComponent (const char *pName) const
	gets a component by its name More...

virtual bool	addComponent (CCComponent *pComponent)
	adds a component More...

virtual bool	removeComponent (const char *pName)
	removes a component by its name More...

virtual void	removeAllComponents ()
	removes all components More...

	CCNode (void)
	Default constructor. More...

virtual	~CCNode (void)
	Default destructor. More...

const char *	description (void)
	Gets the description string. More...

Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)
Public Member Functions inherited from CCCopying
virtual CCObject *	copyWithZone (CCZone *pZone)

Static Public Member Functions
static CCMotionStreak *	create (float fade, float minSeg, float stroke, const ccColor3B &color, const char *path)
	creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture filename More...

local	create ( local fade, local minSeg, local stroke, local color, local path)
	creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture filename More...

static CCMotionStreak *	create (float fade, float minSeg, float stroke, const ccColor3B &color, CCTexture2D *texture)
	creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture More...

local	create ( local fade, local minSeg, local stroke, local color, local texture)
	creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture More...

Static Public Member Functions inherited from CCNodeRGBA
static CCNodeRGBA *	create (void)
	Allocates and initializes a nodergba. More...

Static Public Member Functions inherited from CCNode
static CCNode *	create (void)
	Allocates and initializes a node. More...

Protected Attributes
bool	m_bFastMode
bool	m_bStartingPositionInitialized
var	m_bStartingPositionInitialized
local	m_bStartingPositionInitialized
Protected Attributes inherited from CCNodeRGBA
GLubyte	_displayedOpacity
GLubyte	_realOpacity
ccColor3B	_displayedColor
ccColor3B	_realColor
bool	_cascadeColorEnabled
bool	_cascadeOpacityEnabled
Protected Attributes inherited from CCNode
float	m_fRotationX
	rotation angle on x-axis More...

float	m_fRotationY
	rotation angle on y-axis More...

float	m_fScaleX
	scaling factor on x-axis More...

float	m_fScaleY
	scaling factor on y-axis More...

float	m_fVertexZ
	OpenGL real Z vertex. More...

CCPoint	m_obPosition
	position of the node More...

float	m_fSkewX
	skew angle on x-axis More...

float	m_fSkewY
	skew angle on y-axis More...

CCPoint	m_obAnchorPointInPoints
	anchor point in points More...

CCPoint	m_obAnchorPoint
	anchor point normalized (NOT in points) More...

CCSize	m_obContentSize
	untransformed size of the node More...

CCAffineTransform	m_sAdditionalTransform
	transform More...

CCAffineTransform	m_sTransform
	transform More...

CCAffineTransform	m_sInverse
	transform More...

CCCamera *	m_pCamera
	a camera More...

CCGridBase *	m_pGrid
	a grid More...

int	m_nZOrder
	z-order value that affects the draw order More...

CCArray *	m_pChildren
	array of children nodes More...

CCNode *	m_pParent
	weak reference to parent node More...

int	m_nTag
	a tag. Can be any number you assigned just to identify this node More...

void *	m_pUserData
	A user assingned void pointer, Can be point to any cpp object. More...

CCObject *	m_pUserObject
	A user assigned CCObject. More...

CCGLProgram *	m_pShaderProgram
	OpenGL shader. More...

ccGLServerState	m_eGLServerState
	OpenGL servier side state. More...

unsigned int	m_uOrderOfArrival
	used to preserve sequence while sorting children with the same zOrder More...

CCScheduler *	m_pScheduler
	scheduler used to schedule timers and updates More...

CCActionManager *	m_pActionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...

bool	m_bRunning
	is running More...

bool	m_bTransformDirty
	transform dirty flag More...

bool	m_bInverseDirty
	transform dirty flag More...

bool	m_bAdditionalTransformDirty
	The flag to check whether the additional transform is dirty. More...

bool	m_bVisible
	is this node visible More...

bool	m_bIgnoreAnchorPointForPosition
	true if the Anchor Point will be (0,0) when you position the CCNode, false otherwise. More...

bool	m_bReorderChildDirty
	children order dirty flag More...

int	m_nScriptHandler
	script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

int	m_nUpdateScriptHandler
	script handler for update() callback per frame, which is invoked from lua & javascript. More...

ccScriptType	m_eScriptType
	type of script binding, lua or javascript More...

CCComponentContainer *	m_pComponentContainer
	Dictionary of components. More...

Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

MotionStreak.

Creates a trailing path.

Constructor & Destructor Documentation

CCMotionStreak ( )

var ctor ( )

local CCMotionStreak ( )

virtual ~CCMotionStreak ( )

virtual

Member Function Documentation

static CCMotionStreak* create	(	float	fade,
		float	minSeg,
		float	stroke,
		const ccColor3B &	color,
		const char *	path
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture filename

var create	(	var	fade,
		var	minSeg,
		var	stroke,
		var	color,
		var	path
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture filename

local create	(	local	fade,
		local	minSeg,
		local	stroke,
		local	color,
		local	path
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture filename

static CCMotionStreak* create	(	float	fade,
		float	minSeg,
		float	stroke,
		const ccColor3B &	color,
		CCTexture2D *	texture
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture

var create	(	var	fade,
		var	minSeg,
		var	stroke,
		var	color,
		var	texture
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture

local create	(	local	fade,
		local	minSeg,
		local	stroke,
		local	color,
		local	texture
	)

static

creates and initializes a motion streak with fade in seconds, minimum segments, stroke's width, color, texture

virtual void draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented from CCNode.

var draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented from CCNode.

local draw ( )

virtual

Override this method to draw your own node.

The following GL states will be enabled by default:

glEnableClientState(GL_VERTEX_ARRAY);
glEnableClientState(GL_COLOR_ARRAY);
glEnableClientState(GL_TEXTURE_COORD_ARRAY);
glEnable(GL_TEXTURE_2D); AND YOU SHOULD NOT DISABLE THEM AFTER DRAWING YOUR NODE But if you enable any other GL state, you should disable it after drawing your node.

Reimplemented from CCNode.

virtual ccBlendFunc getBlendFunc ( void )

virtual

Returns the blending function that is currently being used.

Returns: A ccBlendFunc structure with source and destination factor which specified pixel arithmetic.

Implements CCBlendProtocol.

local getBlendFunc ( )

virtual

Returns the blending function that is currently being used.

Returns: A ccBlendFunc structure with source and destination factor which specified pixel arithmetic.

Implements CCBlendProtocol.

virtual GLubyte getOpacity ( void )

virtual

Returns the opacity.

The opacity which indicates how transparent or opaque this node is. 0 indicates fully transparent and 255 is fully opaque.

Returns: The opacity of sprite, from 0 ~ 255

Reimplemented from CCNodeRGBA.

var getOpacity ( )

virtual

Returns the opacity.

The opacity which indicates how transparent or opaque this node is. 0 indicates fully transparent and 255 is fully opaque.

Returns: The opacity of sprite, from 0 ~ 255

Reimplemented from CCNodeRGBA.

local getOpacity ( )

virtual

Returns the opacity.

The opacity which indicates how transparent or opaque this node is. 0 indicates fully transparent and 255 is fully opaque.

Returns: The opacity of sprite, from 0 ~ 255

Reimplemented from CCNodeRGBA.

virtual CCTexture2D* getTexture ( void )

virtual

Returns the currently used texture.

Returns: The texture that is currenlty being used.

Implements CCTextureProtocol.

var getTexture ( )

virtual

Returns the currently used texture.

Returns: The texture that is currenlty being used.

Implements CCTextureProtocol.

local getTexture ( )

virtual

Returns the currently used texture.

Returns: The texture that is currenlty being used.

Implements CCTextureProtocol.

bool initWithFade	(	float	fade,
		float	minSeg,
		float	stroke,
		const ccColor3B &	color,
		const char *	path
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture filename

var initWithFade	(	var	fade,
		var	minSeg,
		var	stroke,
		var	color,
		var	path
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture filename

local initWithFade	(	local	fade,
		local	minSeg,
		local	stroke,
		local	color,
		local	path
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture filename

bool initWithFade	(	float	fade,
		float	minSeg,
		float	stroke,
		const ccColor3B &	color,
		CCTexture2D *	texture
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture

var initWithFade	(	var	fade,
		var	minSeg,
		var	stroke,
		var	color,
		var	texture
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture

local initWithFade	(	local	fade,
		local	minSeg,
		local	stroke,
		local	color,
		local	texture
	)

initializes a motion streak with fade in seconds, minimum segments, stroke's width, color and texture

bool isFastMode ( )

inline

When fast mode is enabled, new points are added faster but with lower precision.

var isFastMode ( )

inline

When fast mode is enabled, new points are added faster but with lower precision.

local isFastMode ( )

inline

When fast mode is enabled, new points are added faster but with lower precision.

virtual bool isOpacityModifyRGB ( void )

virtual

Returns whether or not the opacity will be applied using glColor(R,G,B,opacity) or glColor(opacity, opacity, opacity, opacity)

Returns: Returns opacity modify flag.

Reimplemented from CCNodeRGBA.

var isOpacityModifyRGB ( )

virtual

Returns whether or not the opacity will be applied using glColor(R,G,B,opacity) or glColor(opacity, opacity, opacity, opacity)

Returns: Returns opacity modify flag.

Reimplemented from CCNodeRGBA.

local isOpacityModifyRGB ( )

virtual

Returns whether or not the opacity will be applied using glColor(R,G,B,opacity) or glColor(opacity, opacity, opacity, opacity)

Returns: Returns opacity modify flag.

Reimplemented from CCNodeRGBA.

bool isStartingPositionInitialized ( )

inline

var isStartingPositionInitialized ( )

inline

local isStartingPositionInitialized ( )

inline

void reset ( )

Remove all living segments of the ribbon.

var reset ( )

Remove all living segments of the ribbon.

local reset ( )

Remove all living segments of the ribbon.

virtual void setBlendFunc ( ccBlendFunc blendFunc)

virtual

Sets the source blending function.

Parameters

blendFunc A structure with source and destination factor to specify pixel arithmetic, e.g. {GL_ONE, GL_ONE}, {GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA}.

Implements CCBlendProtocol.

local setBlendFunc ( local blendFunc)

virtual

Sets the source blending function.

Parameters

blendFunc A structure with source and destination factor to specify pixel arithmetic, e.g. {GL_ONE, GL_ONE}, {GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA}.

Implements CCBlendProtocol.

void setFastMode ( bool bFastMode)

inline

var setFastMode ( var bFastMode)

inline

local setFastMode ( local bFastMode)

inline

virtual void setOpacity ( GLubyte opacity)

virtual

Changes the opacity.

Parameters

value Goes from 0 to 255, where 255 means fully opaque and 0 means fully transparent.

Reimplemented from CCNodeRGBA.

var setOpacity ( var opacity)

virtual

Changes the opacity.

Parameters

value Goes from 0 to 255, where 255 means fully opaque and 0 means fully transparent.

Reimplemented from CCNodeRGBA.

local setOpacity ( local opacity)

virtual

Changes the opacity.

Parameters

value Goes from 0 to 255, where 255 means fully opaque and 0 means fully transparent.

Reimplemented from CCNodeRGBA.

virtual void setOpacityModifyRGB ( bool bValue)

virtual

Changes the OpacityModifyRGB property.

If thie property is set to true, then the rendered color will be affected by opacity. Normally, r = r * opacity/255, g = g * opacity/255, b = b * opacity/255.

Parameters

bValue true then the opacity will be applied as: glColor(R,G,B,opacity); false then the opacity will be applied as: glColor(opacity, opacity, opacity, opacity);

Reimplemented from CCNodeRGBA.

var setOpacityModifyRGB ( var bValue)

virtual

Changes the OpacityModifyRGB property.

If thie property is set to true, then the rendered color will be affected by opacity. Normally, r = r * opacity/255, g = g * opacity/255, b = b * opacity/255.

Parameters

bValue true then the opacity will be applied as: glColor(R,G,B,opacity); false then the opacity will be applied as: glColor(opacity, opacity, opacity, opacity);

Reimplemented from CCNodeRGBA.

local setOpacityModifyRGB ( local bValue)

virtual

Changes the OpacityModifyRGB property.

If thie property is set to true, then the rendered color will be affected by opacity. Normally, r = r * opacity/255, g = g * opacity/255, b = b * opacity/255.

Parameters

bValue true then the opacity will be applied as: glColor(R,G,B,opacity); false then the opacity will be applied as: glColor(opacity, opacity, opacity, opacity);

Reimplemented from CCNodeRGBA.

virtual void setPosition ( const CCPoint & position)

virtual

Override super methods.

Reimplemented from CCNode.

var setPosition ( var position)

virtual

Override super methods.

Reimplemented from CCNode.

local setPosition ( local position)

virtual

Override super methods.

Reimplemented from CCNode.

void setStartingPositionInitialized ( bool bStartingPositionInitialized)

inline

var setStartingPositionInitialized ( var bStartingPositionInitialized)

inline

local
setStartingPositionInitialized ( local bStartingPositionInitialized)

inline

virtual void setTexture ( CCTexture2D * texture)

virtual

Sets a new texuture.

It will be retained.

Parameters

texture A valid CCTexture2D object, which will be applied to this sprite object.

Implements CCTextureProtocol.

var setTexture ( var texture)

virtual

Sets a new texuture.

It will be retained.

Parameters

texture A valid CCTexture2D object, which will be applied to this sprite object.

Implements CCTextureProtocol.

local setTexture ( local texture)

virtual

Sets a new texuture.

It will be retained.

Parameters

texture A valid CCTexture2D object, which will be applied to this sprite object.

Implements CCTextureProtocol.

void tintWithColor ( ccColor3B colors)

color used for the tint

var tintWithColor ( var colors)

color used for the tint

local tintWithColor ( local colors)

color used for the tint

virtual void update ( float delta)

virtual

Reimplemented from CCNode.

var update ( var delta)

virtual

Reimplemented from CCNode.

local update ( local delta)

virtual

Reimplemented from CCNode.

Member Data Documentation

bool m_bFastMode

protected

bool m_bStartingPositionInitialized

protected

var m_bStartingPositionInitialized

protected

local
m_bStartingPositionInitialized

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x/cocos2dx/misc_nodes/CCMotionStreak.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
