CCRotateBy Class Reference

Rotates a CCNode object clockwise a number of degrees by modifying it's rotation attribute. More...

#include <CCActionInterval.h>

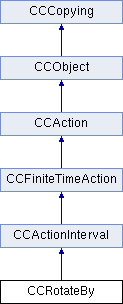

Inheritance diagram for CCRotateBy:
CCActionInterval CCFiniteTimeAction CCAction CCObject CCCopying

Public Member Functions

bool initWithDuration (float fDuration, float fDeltaAngle)
 initializes the action More...

var initWithDuration ( var fDuration, var fDeltaAngle)
 initializes the action More...

local initWithDuration ( local fDuration, local fDeltaAngle)
 initializes the action More...

bool initWithDuration (float fDuration, float fDeltaAngleX, float fDeltaAngleY)
virtual CCObjectcopyWithZone (CCZone *pZone)
virtual void startWithTarget (CCNode *pTarget)
 called before the action start. It will also set the target. More...

virtual void update (float time)
 called once per frame. More...

var update ( var time)
 called once per frame. More...

local update ( local time)
 called once per frame. More...

virtual CCActionIntervalreverse (void)
 returns a reversed action More...

local reverse ()
 returns a reversed action More...

- Public Member Functions inherited from CCActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

local getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

bool initWithDuration (float d)
 initializes the action More...

virtual bool isDone (void)
 returns true if the action has finished More...

var isDone ()
 returns true if the action has finished More...

local isDone ()
 returns true if the action has finished More...

virtual void step (float dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
- Public Member Functions inherited from CCFiniteTimeAction
 CCFiniteTimeAction ()
virtual ~CCFiniteTimeAction ()
float getDuration (void)
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from CCAction
 CCAction (void)
 ctor ()
 CCAction ()
virtual ~CCAction (void)
const char * description ()
virtual void stop (void)
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

CCNodegetTarget (void)
void setTarget (CCNode *pTarget)
 The action will modify the target properties. More...

var setTarget ( var pTarget)
 The action will modify the target properties. More...

local setTarget ( local pTarget)
 The action will modify the target properties. More...

CCNodegetOriginalTarget (void)
local getOriginalTarget ()
void setOriginalTarget (CCNode *pOriginalTarget)
 Set the original target, since target can be nil. More...

int getTag (void)
var getTag ()
local getTag ()
void setTag (int nTag)
var setTag ( var nTag)
local setTag ( local nTag)
- Public Member Functions inherited from CCObject
 CCObject (void)
virtual ~CCObject (void)
void release (void)
void retain (void)
CCObjectautorelease (void)
CCObjectcopy (void)
bool isSingleReference (void) const
unsigned int retainCount (void) const
virtual bool isEqual (const CCObject *pObject)
virtual void acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions

static CCRotateBycreate (float fDuration, float fDeltaAngle)
 creates the action More...

static CCRotateBycreate (float fDuration, float fDeltaAngleX, float fDeltaAngleY)
- Static Public Member Functions inherited from CCActionInterval
static CCActionIntervalcreate (float d)
 creates the action More...

local create ( local d)
 creates the action More...


Protected Attributes

float m_fAngleX
float m_fStartAngleX
var m_fStartAngleX
local m_fStartAngleX
float m_fAngleY
float m_fStartAngleY
var m_fStartAngleY
local m_fStartAngleY
- Protected Attributes inherited from CCActionInterval
float m_elapsed
bool m_bFirstTick
var m_bFirstTick
local m_bFirstTick
- Protected Attributes inherited from CCFiniteTimeAction
float m_fDuration
 duration in seconds More...

- Protected Attributes inherited from CCAction
CCNodem_pOriginalTarget
CCNodem_pTarget
 The "target". More...

var m_pTarget
 The "target". More...

local m_pTarget
 The "target". More...

int m_nTag
 The action tag. More...

- Protected Attributes inherited from CCObject
unsigned int m_uReference
unsigned int m_uAutoReleaseCount

Additional Inherited Members

- Public Attributes inherited from CCObject
unsigned int m_uID
int m_nLuaID

Detailed Description

Rotates a CCNode object clockwise a number of degrees by modifying it's rotation attribute.

Member Function Documentation

virtual CCObject* copyWithZone ( CCZone pZone)
virtual

Reimplemented from CCActionInterval.

static CCRotateBy* create ( float  fDuration,
float  fDeltaAngle
)
static

creates the action

var create ( var  fDuration,
var  fDeltaAngle
)
static

creates the action

local create ( local  fDuration,
local  fDeltaAngle
)
static

creates the action

static CCRotateBy* create ( float  fDuration,
float  fDeltaAngleX,
float  fDeltaAngleY
)
static
var create ( var  fDuration,
var  fDeltaAngleX,
var  fDeltaAngleY
)
static
local create ( local  fDuration,
local  fDeltaAngleX,
local  fDeltaAngleY
)
static
bool initWithDuration ( float  fDuration,
float  fDeltaAngle
)

initializes the action

var initWithDuration ( var  fDuration,
var  fDeltaAngle
)

initializes the action

local initWithDuration ( local  fDuration,
local  fDeltaAngle
)

initializes the action

bool initWithDuration ( float  fDuration,
float  fDeltaAngleX,
float  fDeltaAngleY
)
var initWithDuration ( var  fDuration,
var  fDeltaAngleX,
var  fDeltaAngleY
)
local initWithDuration ( local  fDuration,
local  fDeltaAngleX,
local  fDeltaAngleY
)
virtual CCActionInterval* reverse ( void  )
virtual

returns a reversed action

Reimplemented from CCActionInterval.

var reverse (   )
virtual

returns a reversed action

Reimplemented from CCActionInterval.

local reverse (   )
virtual

returns a reversed action

Reimplemented from CCActionInterval.

virtual void startWithTarget ( CCNode pTarget)
virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

var startWithTarget ( var  pTarget)
virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

local startWithTarget ( local  pTarget)
virtual

called before the action start. It will also set the target.

Reimplemented from CCActionInterval.

virtual void update ( float  time)
virtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from CCAction.

var update ( var  time)
virtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from CCAction.

local update ( local  time)
virtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from CCAction.

Member Data Documentation

float m_fAngleX
protected
var m_fAngleX
protected
local m_fAngleX
protected
float m_fAngleY
protected
var m_fAngleY
protected
local m_fAngleY
protected
float m_fStartAngleX
protected
var m_fStartAngleX
protected
local m_fStartAngleX
protected
float m_fStartAngleY
protected
var m_fStartAngleY
protected
local m_fStartAngleY
protected

The documentation for this class was generated from the following file:
