Fades Out an object that implements the RGBAProtocol protocol. More...

#include <CCActionInterval.h>

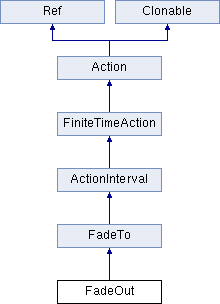

Inheritance diagram for FadeOut:

Public Member Functions
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

virtual FadeOut *	clone () const override
	returns a clone of action More...

local	clone ()
	returns a clone of action More...

virtual FadeTo *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

void	setReverseAction (FadeTo *ac)
var	setReverseAction ( var ac)
local	setReverseAction ( local ac)
Public Member Functions inherited from FadeTo
virtual void	update (float time) override
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

var	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
local	setAmplitudeRate ( local amp)
float	getAmplitudeRate (void)
local	getAmplitudeRate ()
virtual bool	isDone (void) const override
	return true if the action has finished More...

var	isDone ()
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

var	getDuration ()
	get duration in seconds of the action More...

local	getDuration ()
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

var	setDuration ( var duration)
	set duration in seconds of the action More...

local	setDuration ( local duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
var	getOriginalTarget ()
local	getOriginalTarget ()
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

var	setOriginalTarget ( var originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static FadeOut *	create (float d)
	creates the action More...

Static Public Member Functions inherited from FadeTo
static FadeTo *	create (float duration, GLubyte opacity)
	creates an action with duration and opacity More...

var	create ( var duration, var opacity)
	creates an action with duration and opacity More...

local	create ( local duration, local opacity)
	creates an action with duration and opacity More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: FadeOut():_reverseAction(nullptr) {} virtual ~FadeOut() {}private: CC_DISALLOW_COPY_AND_ASSIGN(FadeOut)
var	__pad0__: FadeOut():_reverseAction(nullptr) {} virtual ~FadeOut() {}private: CC_DISALLOW_COPY_AND_ASSIGN(FadeOut)
local	__pad0__: FadeOut():_reverseAction(nullptr) {} virtual ~FadeOut() {}private: CC_DISALLOW_COPY_AND_ASSIGN(FadeOut)
FadeTo *	_reverseAction
Public Attributes inherited from FadeTo
CC_CONSTRUCTOR_ACCESS	__pad0__: FadeTo() {} virtual ~FadeTo() {} bool initWithDuration(float duration
CC_CONSTRUCTOR_ACCESS GLubyte	opacity
var	opacity
local	opacity
Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS	__pad0__: bool initWithDuration(float d)
local	__pad0__: bool initWithDuration(float d)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

	Ref ()
	Constructor. More...

Protected Attributes inherited from FadeTo
GLubyte	_toOpacity
var	_toOpacity
local	_toOpacity
GLubyte	_fromOpacity
var	_fromOpacity
local	_fromOpacity
Protected Attributes inherited from ActionInterval
float	_elapsed
var	_elapsed
local	_elapsed
bool	_firstTick
var	_firstTick
local	_firstTick
Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

var	_referenceCount
	count of references More...

local	_referenceCount
	count of references More...

Detailed Description

Fades Out an object that implements the RGBAProtocol protocol.

It modifies the opacity from 255 to 0. The "reverse" of this action is FadeIn

Member Function Documentation

virtual FadeOut* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from FadeTo.

var clone ( )

overridevirtual

returns a clone of action

Reimplemented from FadeTo.

local clone ( )

overridevirtual

returns a clone of action

Reimplemented from FadeTo.

static FadeOut* create ( float d )

static

creates the action

Parameters

d	in seconds

var create ( var d )

static

creates the action

Parameters

d	in seconds

local create ( local d )

static

creates the action

Parameters

d	in seconds

virtual FadeTo* reverse ( void ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from FadeTo.

var reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from FadeTo.

local reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from FadeTo.

void setReverseAction ( FadeTo * ac )

var setReverseAction ( var ac )

local setReverseAction ( local ac )

virtual void startWithTarget ( Node * target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from FadeTo.

var startWithTarget ( var target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from FadeTo.

local startWithTarget ( local target )

overridevirtual

called before the action start. It will also set the target.

Reimplemented from FadeTo.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

FadeTo* _reverseAction

var _reverseAction

local _reverseAction

The documentation for this class was generated from the following file:

/Users/huabingxu/work/cocos2d-x/cocos/2d/CCActionInterval.h
