CCMoveTo Class Reference

Moves a CCNode object to the position x,y. More...

#include <CCActionInterval.h>

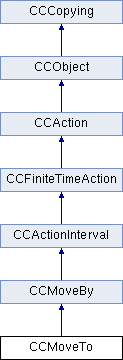

Inheritance diagram for CCMoveTo:

Public Member Functions
bool	initWithDuration (float duration, const CCPoint &position)
	initializes the action More...
virtual CCObject *	copyWithZone (CCZone *pZone)
virtual void	startWithTarget (CCNode *pTarget)
	called before the action start. It will also set the target. More...
Public Member Functions inherited from CCMoveBy
bool	initWithDuration (float duration, const CCPoint &deltaPosition)
	initializes the action More...
var	initWithDuration ( var duration, var deltaPosition)
	initializes the action More...
local	initWithDuration ( local duration, local deltaPosition)
	initializes the action More...
virtual CCActionInterval *	reverse (void)
	returns a reversed action More...
virtual void	update (float time)
	called once per frame. More...
var	update ( var time)
	called once per frame. More...
local	update ( local time)
	called once per frame. More...
Public Member Functions inherited from CCActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...
var	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...
local	getElapsed ()
	how many seconds had elapsed since the actions started to run. More...
bool	initWithDuration (float d)
	initializes the action More...
local	initWithDuration ( local d)
	initializes the action More...
virtual bool	isDone (void)
	returns true if the action has finished More...
local	isDone ()
	returns true if the action has finished More...
virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
var	step ( var dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
void	setAmplitudeRate (float amp)
var	setAmplitudeRate ( var amp)
local	setAmplitudeRate ( local amp)
float	getAmplitudeRate (void)
var	getAmplitudeRate ()
local	getAmplitudeRate ()
Public Member Functions inherited from CCFiniteTimeAction
	CCFiniteTimeAction ()
virtual	~CCFiniteTimeAction ()
float	getDuration (void)
	get duration in seconds of the action More...
void	setDuration (float duration)
	set duration in seconds of the action More...
Public Member Functions inherited from CCAction
	CCAction (void)
	ctor ()
	CCAction ()
virtual	~CCAction (void)
const char *	description ()
virtual void	stop (void)
	called after the action has finished. More...
CCNode *	getTarget (void)
var	getTarget ()
local	getTarget ()
void	setTarget (CCNode *pTarget)
	The action will modify the target properties. More...
local	setTarget ( local pTarget)
	The action will modify the target properties. More...
CCNode *	getOriginalTarget (void)
local	getOriginalTarget ()
void	setOriginalTarget (CCNode *pOriginalTarget)
	Set the original target, since target can be nil. More...
int	getTag (void)
var	getTag ()
local	getTag ()
void	setTag (int nTag)
var	setTag ( var nTag)
local	setTag ( local nTag)
Public Member Functions inherited from CCObject
	CCObject (void)
virtual	~CCObject (void)
void	release (void)
void	retain (void)
CCObject *	autorelease (void)
CCObject *	copy (void)
bool	isSingleReference (void) const
unsigned int	retainCount (void) const
virtual bool	isEqual (const CCObject *pObject)
virtual void	acceptVisitor (CCDataVisitor &visitor)

Static Public Member Functions
static CCMoveTo *	create (float duration, const CCPoint &position)
	creates the action More...
Static Public Member Functions inherited from CCMoveBy
static CCMoveBy *	create (float duration, const CCPoint &deltaPosition)
	creates the action More...
var	create ( var duration, var deltaPosition)
	creates the action More...
local	create ( local duration, local deltaPosition)
	creates the action More...
Static Public Member Functions inherited from CCActionInterval
static CCActionInterval *	create (float d)
	creates the action More...
Static Public Member Functions inherited from CCAction
static CCAction *	create ()
	Create an action. More...
var	create ()
	Create an action. More...
local	create ()
	Create an action. More...

Protected Attributes
CCPoint	m_endPosition
Protected Attributes inherited from CCMoveBy
CCPoint	m_positionDelta
CCPoint	m_startPosition
var	m_startPosition
local	m_startPosition
CCPoint	m_previousPosition
var	m_previousPosition
local	m_previousPosition
Protected Attributes inherited from CCActionInterval
float	m_elapsed
bool	m_bFirstTick
var	m_bFirstTick
local	m_bFirstTick
Protected Attributes inherited from CCFiniteTimeAction
float	m_fDuration
	duration in seconds More...
Protected Attributes inherited from CCAction
CCNode *	m_pOriginalTarget
CCNode *	m_pTarget
	The "target". More...
local	m_pTarget
	The "target". More...
int	m_nTag
	The action tag. More...
Protected Attributes inherited from CCObject
unsigned int	m_uReference
unsigned int	m_uAutoReleaseCount

Additional Inherited Members
Public Attributes inherited from CCObject
unsigned int	m_uID
int	m_nLuaID

Detailed Description

Moves a CCNode object to the position x,y.

x and y are absolute coordinates by modifying it's position attribute. Several CCMoveTo actions can be concurrently called, and the resulting movement will be the sum of individual movements.

Since

v2.1beta2-custom

Member Function Documentation

virtual CCObject* copyWithZone ( CCZone *  pZone )

virtual

Reimplemented from CCMoveBy.

static CCMoveTo* create ( float  duration, const CCPoint &  position  )

static

creates the action

bool initWithDuration	(	float	duration,
		const CCPoint &	position
	)

initializes the action

virtual void startWithTarget ( CCNode *  pTarget )

virtual

called before the action start. It will also set the target.

Reimplemented from CCMoveBy.

Member Data Documentation

CCPoint m_endPosition

protected

---

The documentation for this class was generated from the following file:

• /Users/guanghui/cocos2d-x/cocos2dx/actions/CCActionInterval.h
